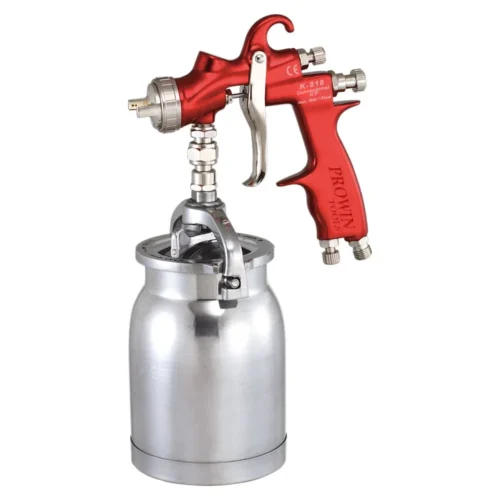

Prowin K-818S Air Spray Gun
Prowin premium series, one-piece forging production and has high texture anodized surface treatment. For 818, we offer HP, Hvlp and Lvlp painting types.
818 series Spray Gun is suitable for the applications like auto refinishing (car refinishing), House decorating, industrial / construction purpose, marine, wood working, etc.
Prowin Tools Company’s Spray Gun is produced for excellent atomization and pattern; suitable for both oil and water-based paintings. Nozzle and Needle are precisely made of Stainless Steel for superb performances and long life.
Description
K-818S is a suction spray gun. Equipped with a 1,000c.c. aluminum cup, Cleaning Brush, and Spanner. Nozzle and Needle are made of high-grade Stainless steel. Well adjustable trigger tension and more finger space for operator comfort. Less air consumption and pressure to reduce.
- Gun Body- is made of aluminum, Forged and carefully polished for finest surface treatment.
- Fluid Nozzle and paint Needle- are precisely made of stainless steel with hardened nozzle. That provides finest atomization and perfect finish. 100% strictly hand checked nozzle set ensure the superior atomization for complete spray gun as well as a whole range of spare nozzles. Water-borne paint materials qualified.
- Air Cap- is made of brass for ensuring a long lifetime. Special cap design provides excellent atomization as well.
- Teflon Material Seals & Packing- are acid and alkali proof for ensuring long lifetime. Less service needed.
- With Built-in Air Regulator, Material Flow Regulator, and Round/Oval Pattern Control Device.
|
Specification
|
Turn – up Kit
|
|||||
|---|---|---|---|---|---|---|
|
Model No
|
Nozzle Size
|
Fluid Output
|
Pattern Width
|
Air Consumption
|
Model No
|
Nozzle Size
|
|
K-818S-10
|
1.0 mm
|
120 ml
|
310 mm
|
210 l/min
|
SG008-818-10
|
1.0 mm
|
|
K-818S-12
|
1.2 mm
|
170 ml
|
300 mm
|
210 l/min
|
SG008-818-12
|
1.2 mm
|
|
K-818S-13
|
1.3 mm
|
200 ml
|
305 mm
|
210 l/min
|
SG008-818-13
|
1.3 mm
|
|
K-818S-14
|
1.4 mm
|
220 ml
|
310 mm
|
210 l/min
|
SG008-818-14
|
1.4 mm
|
|
K-818S-15
|
1.5 mm
|
240 ml
|
315 mm
|
210 l/min
|
SG008-818-15
|
1.5 mm
|
|
K-818S-16
|
1.6 mm
|
260 ml
|
320 mm
|
220 l/min
|
SG008-818-16
|
1.6 mm
|
|
K-818S-18
|
1.8 mm
|
300 ml
|
330 mm
|
220 l/min
|
SG008-818-18
|
1.8 mm
|
|
K-818S-20
|
2.0 mm
|
340 ml
|
340 mm
|
220 l/min
|
SG008-818-20
|
2.0 mm
|
|
K-818S-25
|
2.5 mm
|
380 ml
|
350 mm
|
220 l/min
|
SG008-818-25
|
2.5 mm
|
|
• Type : Suction
• Cup Capacity : 1000 c.c. • Fluid Inlet : 3/8″ • Air Inlet : 1/4″ |
• Working Pressure : 30~43 psi
• Standard Nozzle : 1.6 mm • Gun Weight : 450 gs |
|||||
