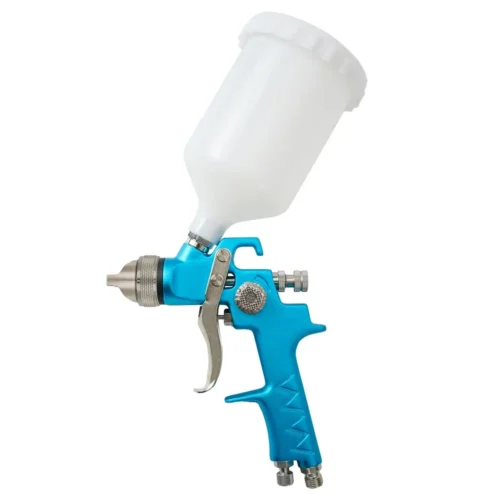

Prowin K-868M Air Spray Gun
Spray Gun is mainly applied for car refinishing, House decorating, industrial/construction purpose, tanning, wood working, etc.
Prowin Tools Company’s Spray Gun is produced for excellent atomization and pattern; suitable for both oil and water-based paintings. Nozzle and Needle are precisely made of Stainless Steel for superb performances and long life.
Prowin Tools Company’s Spray Gun is produced for excellent atomization and pattern; suitable for both oil and water-based paintings. Nozzle and Needle are precisely made of Stainless Steel for superb performances and long life.
Description
Conventional gravity feed spray gun, suitable for industrial purpose and car refinishing painting. Equipped with a 600c.c. gravity cup, a spanner, a cleaning brush and a paint filter.
|
Specification
|
Turn – up Kit
|
|||||
|---|---|---|---|---|---|---|
|
Model No
|
Nozzle Size
|
Fluid Output
|
Pattern Width
|
Air Consumption
|
Model No
|
Nozzle Size
|
|
K-868M-13
|
1.3 mm
|
190 ml
|
265 mm
|
190 l/min
|
SG008-868M-13
|
1.3 mm
|
|
K-868M-14
|
1.4 mm
|
210 ml
|
270 mm
|
190 l/min
|
SG008-868M-14
|
1.4 mm
|
|
K-868M-15
|
1.5 mm
|
250 ml
|
270 mm
|
200 l/min
|
SG008-868M-15
|
1.5 mm
|
|
K-868M-17
|
1.7 mm
|
300 ml
|
275 mm
|
200 l/min
|
SG008-868M-17
|
1.7 mm
|
|
K-868M-20
|
2.0 mm
|
350 ml
|
280 mm
|
200 l/min
|
SG008-868M-20
|
2.0 mm
|
|
K-868M-25
|
2.5 mm
|
400 ml
|
280 mm
|
200 l/min
|
SG008-868M-25
|
2.5 mm
|
|
• Type : Gravity
• Cup Capacity : 600 c.c. • Fluid Inlet : M16×1.5P • Air Inlet : 1/4″ |
• Working Pressure : 30~43 psi • Standard Nozzle : 1.4 mm • Gun Weight : 620 gs |
|||||
