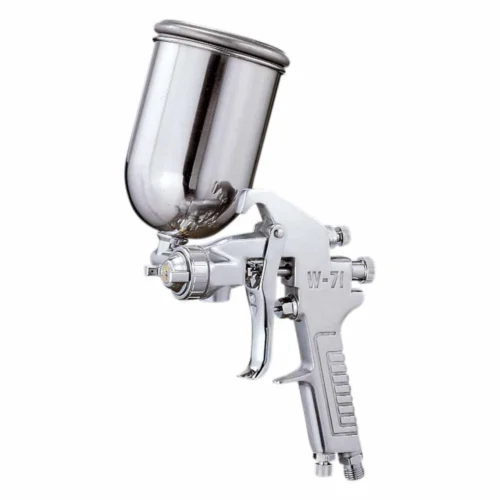

Prowin W-71G Air Spray Gun
Spray Gun is mainly applied for car refinishing, House decorating, industrial/construction purpose, tanning, wood working, etc.
Prowin Tools Company’s Spray Gun is produced for excellent atomization and pattern; suitable for both oil and water-based paintings. Nozzle and Needle are precisely made of Stainless Steel for superb performances and long life.
Prowin Tools Company’s Spray Gun is produced for excellent atomization and pattern; suitable for both oil and water-based paintings. Nozzle and Needle are precisely made of Stainless Steel for superb performances and long life.
Description
Conventional gravity feed spray gun, suitable for vehicle, machine, woodworking and furniture industrial etc….
Equipped with a 400c.c. stainless gravity cup, a spanner, a cleaning brush.
|
Specification
|
Turn – up Kit
|
|||||
|---|---|---|---|---|---|---|
|
Model No
|
Nozzle Size
|
Fluid Output
|
Pattern Width
|
Air Consumption
|
Model No
|
Nozzle Size
|
| W-71G-10 | 1.0 mm | 110 ml | 240 mm | 200 l/min | SG008-71G-10 | 1.0 mm |
| W-71G-13 | 1.3 mm | 180 ml | 260 mm | 200 l/min | SG008-71G-13 | 1.3 mm |
| W-71G-15 | 1.5 mm | 200 ml | 270 mm | 200 l/min | SG008-71G-15 | 1.5 mm |
| W-71G-18 | 1.8 mm | 230 ml | 280 mm | 210 l/min | SG008-71G-18 | 1.8 mm |
|
• Type : Gravity Side Cup
• Cup Capacity : 400 c.c. • Fluid Inlet : 1/4″ • Air Inlet : 1/4″ |
• Working Pressure : 30~43 psi • Standard Nozzle : 1.4 mm • Gun Weight : 460 gs |
|||||
