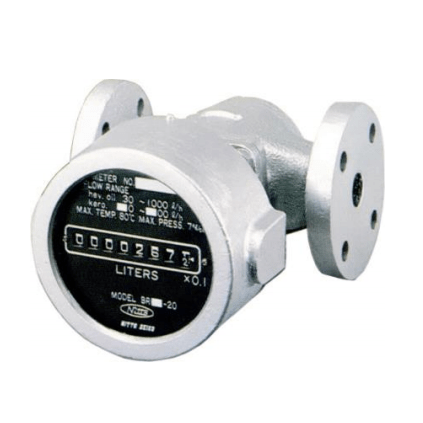

NITTO SEIKO Rotary Piston Flow Meter (BR Series)
The BR series meters are primarily intended for fuel oil measuring applications. These meters are rotary piston type flow meter featuring a compact, lightweight and user friendly design.
Description
Reviews (0)
| Model | 1mPa･s～ Kerosene, light oil |
10～500mPa･s Heavy oil |
| BR13-3 | 30～ 200 L/h | 10～ 200 L/h |
| BR20-2 | 100～1000 L/h | 30～1000 L/h |
| BR25-2 | 250～2500 L/h | 150～2500 L/h |
Nitto Seiko
Nitto Seiko specializes in fluid measurement systems (flow meters) and various inspection & cleaning machines with a focus on quality and environmentally friendly products.
| Model | BR13-3 | BR20-2 | BR25-2 |
| Measured liquid | Kerosene, light oil and A,B,C heavy oil | ||
| Nominal size | 15A | 20A | 25A |
| Liquid viscosity | 2～500 mPa･s | ||
| Liquid temperature | Normal～80 ℃（Option for temperature 80～120 ℃） | ||
| Liquid pressure | 1.0 MPa or less | ||
| Measuring accuracy | Within ± 0.5 ％ | ||
| Connection | JIS10K 15A | JIS10K 20A | JIS10K 25A |
| Material | Body: FC200, Rotor: AC3A | ||
| Model | BR13-3 | BR20-2 | BR25-2 |
| Type of indication | Mechanical | ||
| Display method | Numerical figure roller counter | ||
| Display Total | Non-resetable integrated flow rate: Numerical figure roller 8 digits 9,999,999.9L | ||
| Display Min. Scale | 0.02 L | ||
| No. of output | 1 | ||
| Assignment of output | Unit Pulse | ||
| Kind of signal | Contact signal | ||
| Output Contact capacity | 200VDC, 0.5Ａ,10Ｗ | ||
| Unit Pulse | 1 L/P | ||
| Ambient temperature | 5～60 ℃ | ||
| Explosion-protection | Non-explosion proof | ||
| Material | Aluminum die casting | ||
