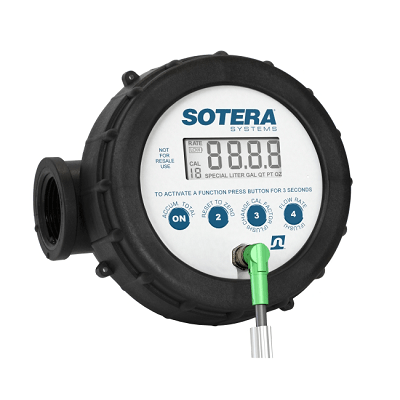

Sotera Nutating Disc Flow Meter (825P)
• 2-20 GPM
• +/- 0.5% accuracy
• Pressure to 125 psi max
• -10° to 130°F temperature range
• 8-30 VDC power source
• 360° positioning LCD display
• Quick, one step calibration
• Corrosion-resistant body
• Measures ounces, pints, quarts, liters, gallons and user defined units
• Glass filled polypropylene housing
• 1 FNPT ports
• 10/100, internal counts per gallon
• 4-20 mA analog output
• Two Lithium CR2032 batteries included
• Also available with 3/4 inch BSPP threads (825P075BSPPS)
• Compatible with pesticides, fertilizers, water, crop oil, gear oil, motor oil, diesel fuel, mineral spirits, ethylene glycol, mild acids, soaps, detergents, diesel exhaust fluid and more
Description
Reviews (0)
The 800 Series Digital Meter features nutating disc positive displacement technology. This simple to use, durable meter provides current and cumulative flow totals, and is field programmable for convenience and versatility. It will measure fluids in ounces, pints, quarts, liters, gallons, and in user specified units. The P designation in the model number tells you this meter has pulse output, making it an excellent choice for batching, use with FMS and PLC systems, and remote monitoring.
