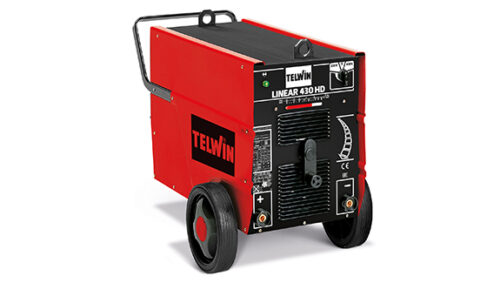

LINEAR 430HD 230V/400V
code 819090
MMA, rectified, electrode welding machine in direct current (DC).
Stepless regulation of welding current.
Use with a wide range of electrodes: rutile, basic, stainless steel, cast iron and aluminium.
MMA DC
CE MARKING
RECTIFIED
EAC CERTIFICATION
3 PH 230V-400V| CODE | 819090 |
|---|---|
| THREE PHASE MAINS VOLTAGE | 230 / 400 V |
| MAINS FREQUENCY | 50 / 60 Hz |
| CURRENT RANGE | 80 – 360 A |
| MAX CURRENT | 325 @ 35 % A |
| DC CURRENT | 240 A |
| MAX NO LOAD VOLTAGE | 62 V |
| MAX ABSORBED POWER | 14 kW |
| ABSORBED POWER AT 60% | 8,4 kW |
| POWER FACTOR | 0,6 |
| D. USABLE ELECTRODES IN DC | 2 – 6 mm |
| PROTECTION DEGREE | IP22 |
| DIMENSIONS | 95 x 49 x 68 cm |
| WEIGHT | 101 kg |
| EAN CODE | 800489795846 0 |
| PIECES/PALLET | 6 pz/pallet |
| PIECES/PALLET - B | 3 pz/pallet B |
