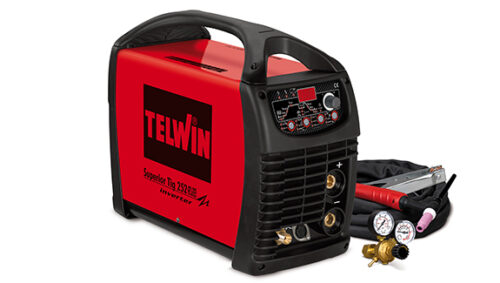

SUPERIOR TIG 252AC/DC HF/LIFT VRD 400V+A
code 816117
Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct current and alternating current (AC/DC).
Use with a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys, aluminium, magnesium and their alloys.
Features:
– pulse and EASY pulse operation
– adjustable pre-heatingfor simpler striking in AC
– TIG regulations: bi-level, start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC AC, square wave frequency
– THINSPOT function for quick and precise tack welding
– MMA regulations: arc force and hot start
– anti-stick device
– VRD device
– remote control and G.R.A. water cooling connector
– thermostatic, overvoltage, undervoltage, overcurrent, water cooling unit protections.
Complete with TIG welding accessories.
TIG AC-DC HF/LIFT MMA
CE MARKING
3 PH 400V
EAC CERTIFICATION
REMOTE CONTROLS
TÜV SUD CERTIFICATION| CODE | 816117 |
|---|---|
| THREE PHASE MAINS VOLTAGE | 400 V |
| MAINS FREQUENCY | 50 / 60 Hz |
| CURRENT RANGE | 5 – 250 A |
| MAX CURRENT | 230 @ 20 % A |
| DC CURRENT | 115 A |
| MAX NO LOAD VOLTAGE | 102 V |
| MAX ABSORBED CURRENT | 12,2 A |
| ABSORBED CURRENT AT 60% | 6 A |
| MAX ABSORBED POWER | 7,5 kW |
| ABSORBED POWER AT 60% | 3,3 kW |
| MAINS FUSE | 10 A |
| EFFICIENCY | 85 % |
| POWER FACTOR | 0,8 |
| D. USABLE ELECTRODES IN DC | 1,6 – 5 mm |
| PROTECTION DEGREE | IP23 |
| DIMENSIONS | 47 x 19 x 35,5 cm |
| WEIGHT | 19,6 kg |
| EAN CODE | 800489791800 6 |
