Telwin Tig Welding Machine SUPERIOR TIG 422 AC/DC AQUA
Description
Additional information
Reviews (0)

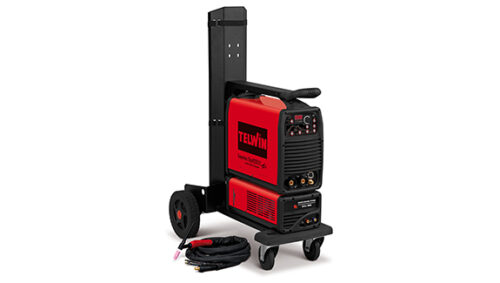

SUPERIOR TIG 422 AC/DC-HF/LIFT 400V AQUA
code 816135
Microprocessor controlled, TIG (high frequency HF or LIFT striking), PULSE TIG and MMA inverter welding machine in direct and alternating current (AC/DC).
Use with a wide range of materials such assteel, stainless steel, aluminium, titanium, copper, nickel, magnesium and their alloys.
Features:
– pulse and EASY pulse operation,
– 9 customized welding programmes,
– TIG regulations:bi-level, start up/end current, spot welding time, pre/post gas, current up/down slope, balance DC/AC, square wave frequency,
– MMA regulations: arc force and hot start according to the type of electrode in use,
– anti-stick device,
– remote control and G.R.A. water cooling connector,
– storage on on-board E2PROM of the last 10 alarms,
– thermostatic, overvoltage, undervoltage, inside dirtiness, overcurrent, phase failure, water cooling unit protections.
Complete with TIG welding accessories, trolley and G.R.A. Water cooling unit.
TIG AC-DC HF/LIFT MMA
CE MARKING
3 PH 400V
EAC CERTIFICATION
REMOTE CONTROLS| CODE | 816135 |
|---|---|
| THREE PHASE MAINS VOLTAGE | 400 V |
| MAINS FREQUENCY | 50 / 60 Hz |
| CURRENT RANGE | 5 – 350 A |
| MAX CURRENT | 350 @ 35 % A |
| DC CURRENT | 250 A |
| MAX NO LOAD VOLTAGE | 64 V |
| MAX ABSORBED CURRENT | 21 A |
| ABSORBED CURRENT AT 60% | 13 A |
| MAX ABSORBED POWER | 14 kW |
| ABSORBED POWER AT 60% | 8 kW |
| MAINS FUSE | 16 A |
| EFFICIENCY | 85 % |
| POWER FACTOR | 0,9 |
| D. USABLE ELECTRODES IN DC | 1,6 – 6 mm |
| PROTECTION DEGREE | IP23 |
| DIMENSIONS | 93,5 x 50 x 119,5 cm |
| WEIGHT | 71 kg |
| EAN CODE | 800489799773 5 |
