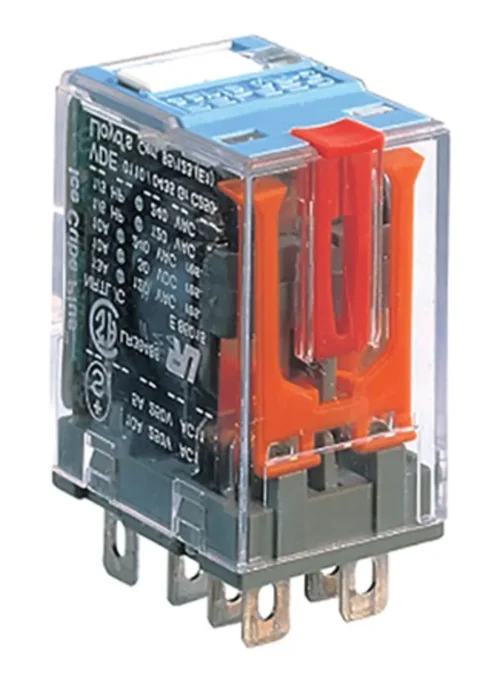

Turck Plug In Power Relay, 24V dc Coil, 10A Switching Current, DPDT
Product details
10A Plug-In Relays (8 or 11 Pin)
Dual function, colour coded test button push to test or lift to latch
Mechanical flag indicator and coil LED as standard
Operating Temperature Range -20 to +60°C
Contact material silver-nickel (AgNi)
H71, W35, D35mm
Description
Reviews (0)
Specifications
Brand
Coil Voltage
24V dc
Contact Configuration
DPDT
Mounting Type
Plug In
Switching Current
10A
Number of Poles
2
Latching
No
Terminal Type
Plug In
Maximum Switching Voltage AC
250V
Maximum Switching Voltage DC
220V dc
Length
21mm
Coil Resistance
594Ω
Coil Power
1W
Height
37.5mm
Contact Material
Silver Alloy
Minimum Operating Temperature
-40°C
Series
C7-A20
Maximum Operating Temperature
+70°C
Isolation Coil To Contact
2.5kV
Depth
28mm
Life
≥100000 (Electrical) Operations, 20000000 (Mechanical) Operations
Application
General Purpose
