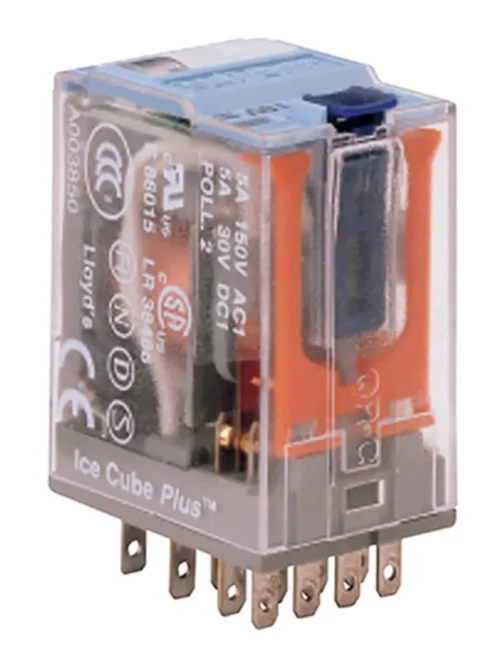

Turck Plug In Power Relay, 24V dc Coil, 5A Switching Current, 4PDT
Product details
5A 4PCO Standard – C9 Series
Relays have a test button, LED indication and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250Vac and the operating temperature is -20 to +60°C.
Description
Reviews (0)
Specifications
Brand
Turck
Coil Voltage
24V dc
Contact Configuration
4PDT
Mounting Type
Plug In
Switching Current
5A
Number of Poles
4
Latching
No
Terminal Type
Plug In
Maximum Switching Voltage AC
250V
Maximum Switching Voltage DC
110V dc
Length
21mm
Coil Resistance
594Ω
Coil Power
1W
Height
37.5mm
Life
≥100000 (Electrical) Operations, 20000000 (Mechanical) Operations
Contact Material
Silver Alloy
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+70°C
Isolation Coil To Contact
2.5kV
Depth
28mm
Series
C9-A41
Application
General Purpose
Country of Origin
Spain
