Specifications
| Part Number | Tip Size | Metal Thickness | Cutting Speed | Average Kerf Width | Total Preheat Oxygen Consumption | Gas Pressure – Cutting Oxygen | Gas Pressure – Fuel Gas | Gas Pressure – Preheat Oxygen | Total Fuel Gas Consumption | Total Oxygen Consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| 0333-0363 | 00 in. | 1/4 in. | 23-30 in./min | 0.05 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 68-75 cfh |
| 0333-0363 | 00 in. | 3/8 in. | 22-29 in./min | 0.05 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 68-75 cfh |
| 0333-0364 | 0 in. | 1/2 in. | 20-28 in./min | 0.06 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 110-120 cfh |
| 0333-0364 | 0 in. | 3/4 in. | 18-26 in./min | 0.06 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 110-120 cfh |
| 0333-0365 | 1 in. | 1 in. | 17-24 in./min | 0.07 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 145-160 cfh |
| 0333-0365 | 1 in. | 1 1/4 in. | 16-20 in./min | 0.07 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 145-160 cfh |
| 0333-0365 | 1 in. | 1 1/2 in. | 12-16 in./min | 0.07 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 145-160 cfh |
| 0333-0366 | 2 in. | 2 in. | 11-15 in./min | 0.09 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 230-250 cfh |
| 0333-0366 | 2 in. | 2 1/2 in. | 10-13 in./min | 0.09 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 230-250 cfh |
| 0333-0366 | 2 in. | 3 in. | 9-11 in./min | 0.09 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 230-250 cfh |
| 0333-0367 | 3 in. | 4 in. | 7-10 in./min | 0.11 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 285-320 cfh |
| 0333-0367 | 3 in. | 5 in. | 6-8 in./min | 0.11 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 285-320 cfh |
| 0333-0367 | 3 in. | 6 in. | 5-7 in./min | 0.11 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 285-320 cfh |
| 0333-0368 | 4 in. | 7 in. | 5-6 in./min | 0.14 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 390-450 cfh |
| 0333-0368 | 4 in. | 8 in. | 4-6 in./min | 0.14 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 390-450 cfh |
| 0333-0369 | 5 in. | 9 in. | 4-5 in./min | 0.18 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 670-720 cfh |
| 0333-0369 | 5 in. | 10 in. | 3-5 in./min | 0.18 in. | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | 670-720 cfh |
| 0333-0370 | 6 in. | – | – | – | 23-140 cfh | 85-95 psig | 8 oz + psig | 30-35 psig | 12-65 cfh | – |
Ordering
| Description | Product Number |
|---|---|

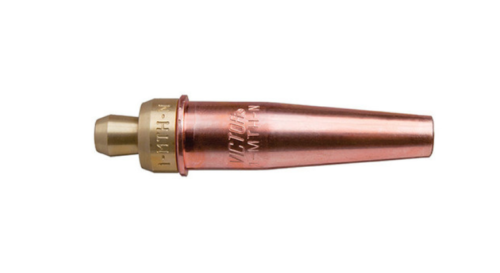

| Victor Professional Cutting Tip, Type MTHN, Size: 00 | 0333-0363 |
| Victor Professional Cutting Tip, Type MTHN, Size: 0 | 0333-0364 |
| Victor Professional Cutting Tip, Type MTHN, Size: 1 | 0333-0365 |
| Victor Professional Cutting Tip, Type MTHN, Size: 2 | 0333-0366 |
| Victor Professional Cutting Tip, Type MTHN, Size: 3 | 0333-0367 |
| Victor Professional Cutting Tip, Type MTHN, Size: 4 | 0333-0368 |
| Victor Professional Cutting Tip, Type MTHN, Size: 5 | 0333-0369 |
| Victor Professional Cutting Tip, Type MTHN, Size: 6 | 0333-0370 |
