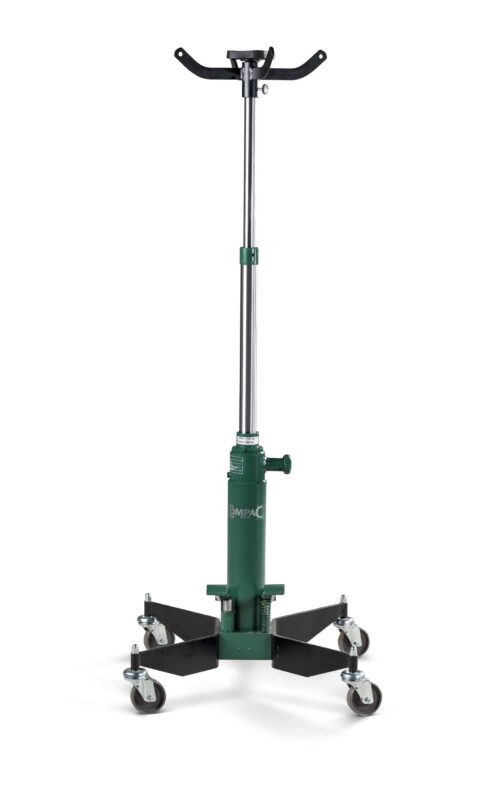

COMPAC TRANSMISSION JACKS TJ-T 1300
932052
- Two stage cylinder for extra low minimum height and extra long stroke.
- Capacity 1300 kg. (1st stage) and 500 kg (2nd stage).
- Minimum height 1000 mm.
- Height up to 2010 mm.
- Ideal for demounting and mounting of engine/transmission.
- Wide wheelbase for stability during lifting and maneuvering of heavy loads.
- Spring loaded lowering system with dead man control.
- Two speed pump unit for fast approach of the piston to working area.
- Large swivel wheels for easy maneuverability.
- Reversible transmission adaptor with saddle and rubber pad.
- Ideal for handling and supporting exhaust systems, fuel tanks, etc.
Description
Reviews (0)
Packing Size
| Capacity (kg) | 1300 |
|---|---|
| Unit weight (kg) | 65 |
| Height (cm) | 28 |
| Length (cm) | 110 |
| Width (cm) | 39 |
| Quantity pr. pallet | 12 |
Dimensions
| Dimension drawing |  |
|---|---|
| Measurement A | 1000 |
| Measurement B | 1500 |
| Measurement B2 | 2010 |
| Measurement C | 760×640 |
| Measurement D | 100 |
