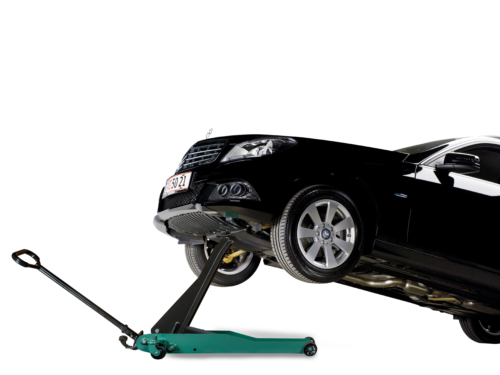

COMPAC TROLLEY JACKS 1,4T-HC 77
911023-1
Description
- Ultra low entry height only 77 mm.
- Long reach chassis improves acces to lifting points deep under most vehicles.
- Very low profile chassis in a lenght of 380 mm.
- Quick approach foot pedal.
- Max. Height 715 mm.
- Ergonomically designed handle for operator comfort.
- Built-in safety lowering control valve for safe lowering even under maximum load.
Description
Reviews (0)
Packing Size
| Capacity (T) | 1,4 |
|---|---|
| Unit weight (kg) | 52 |
| Height (cm) | 27 |
| Length (cm) | 116 |
| Width (cm) | 50 |
| Quantity pr. pallet | 14 |
Dimensions
| Dimension drawing |  |
|---|---|
| Measurement A | 77 |
| Measurement B | 715 |
| Measurement C | 1050 |
| Measurement D | 190 |
| Measurement E | 380 |
| Measurement F | 925 |
