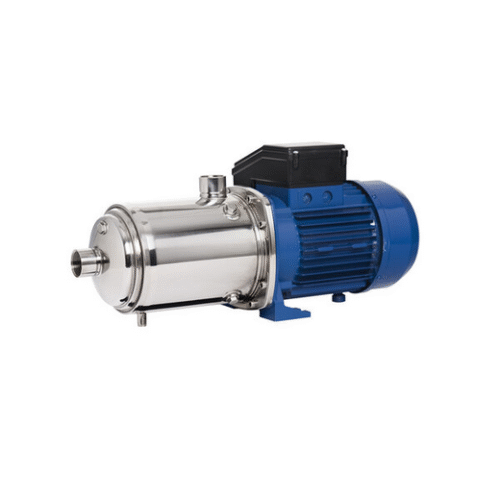

Ebara PMATRIX
Multistage horizontal AISI 304 stainless steel centrifugal pump, suitable for drinking water. Available in various versions and models, suitable for many domestic and industrial applications.
Features
Description
Reviews (0)
Multistage horizontal AISI 304 stainless steel centrifugal pump, suitable for drinking water.
Its sturdy construction and compact design allow its installation in various domestic and industrial applications.
For further technical information see the Databook
• Pressure boosters
• Water distribution and treatment
• Heating and air conditioning
• Cooling and chillers
• Irrigation and rainwater harvesting
• Industrial washing
• Industrial installations
Technical Features
Technical data
|
Flow rate
|
Up to 27 m³/h
|
|
Total head
|
Up to 97 m
|
|
Max. working pressure
|
10 bar
|
|
Max. temperature of the liquid
|
15°C ÷ +85°C for std, H, HS versions
-15°C ÷ +110°C for TE version for high temperatures |
|
Poles
|
2
|
|
Insulation class
|
F
|
|
Protection degree
|
IP55
|
|
Voltage
|
Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10% |
Materials
|
Pump body
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Impeller
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Shaft
|
Stainless steel AISI 304 (EN 1.4301)
|
|
Mechanical seal
|
Ceramic/Carbon/EPDM (standard)
H = Graphite/Ceramic/FPM HS = Silicon Carbide/Silicon Carbide/FPM |
|
Motor support
|
EN AB-AISi11Cu2(Fe) (precision-cast aluminium)
|
