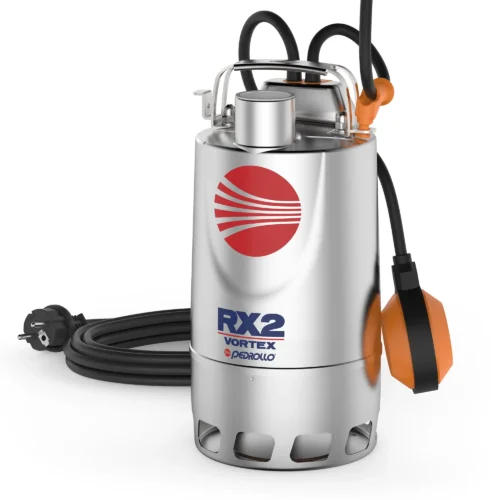

Pedrollo RX-VORTEX Stainless-steel submersible drainage pumps for greywater
RX-VORTEX pumps excel in draining dirty water, featuring designs that ensure reliable performance even during continuous operation, thanks to comprehensive motor cooling. Ideal for domestic, civil, and industrial applications, these pumps are perfect for removing dirty water containing suspended solids.
Description
Reviews (0)
Technical Features
| Flow rate | up to 380 l/min (22.8 m3/h) |
| Head up | up to 12.8 m |
| Liquid temperature | up to +50 °C (+90 °C for intermittent service up to 3 minutes) |
| Capable of processing suspended solids | – up to Ø 20 mm for RX 2/20, RX 3/20 – up to Ø 40 mm for RX 4/40, RX 5/40 |
| Maximum operating depth below water level | up to 10m (with an appropriately sized power cable) |
| Draining capability | – 25 mm per RX 2/20, RX 3/20 – 50 mm per RX 4/40, RX 5/40 |
| Motor | 2 poles |
| Ingress protection rating | IP 68 |
Construction Materials
| Pump housing | Stainless steel AISI 304 |
| Impeller | Stainless steel AISI 304 |
| Motor sleeve | Stainless steel AISI 304 |
| Shaft | Stainless steel AISI 431 |
