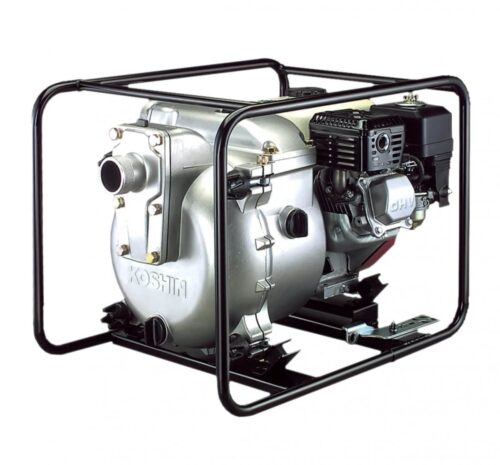

KOSHIN KTH-50X 2 INCH SEWAGE PUMP
Powerful pump, specially designed for heavy duty! Special design and wear-resistant materials provide high capacity and suction power.
- Maximum capacity: 700 L/min
- Maximum suction height: 8 meters
- Maximum total head: 30 meters
See product DESCRIPTION for more information.
Description
Reviews (0)
– Suitable for sandy and muddy water with particles up to 20 mm
– Washing livestock, barns or farm equipment
– Irrigation with sprinkler systems
– Pump water from well
Performance Curve:
Documentation:
* This link leads to the parts list of the model KTH-50X-BAB. If the complete designation of your pump model differs from this, please ask us for the correct parts list via our contact form.
Technical information:
| MODEL | KTH-50X |
| Connection | 50 mm (2″) |
| Connection thread | Outer pipe thread |
| Total head | 30 m |
| Delivery quantity | 700 L/min |
| Max. Suction height | 8 m |
| Grain size | Max. 20 mm |
| Motor type | Air-cooled 4-stroke gasoline engine |
| Motor | Honda GX160 |
| Cubic capacity | 163 ccm |
| Nominal power | 2.9 kW (3,9 PS) / 3600 U/min |
| Max. Power | 3.6 kW (4,9 PS) / 3600 U/min |
| Fuel | Automotive unleaded gasoline |
| Fuel tank capacity | 3.1 L |
| Continuous operating time | Approx. 2.2 hours. |
| Start method | Cable starter |
| Standard accessories | 1 filter, 2 hose couplings, 3 hose clamps, 1 power tool set |
| Weight | 37 kg |
| Dimensions L×W×H (cm) | 64.6× 48.8 × 50.9 |
