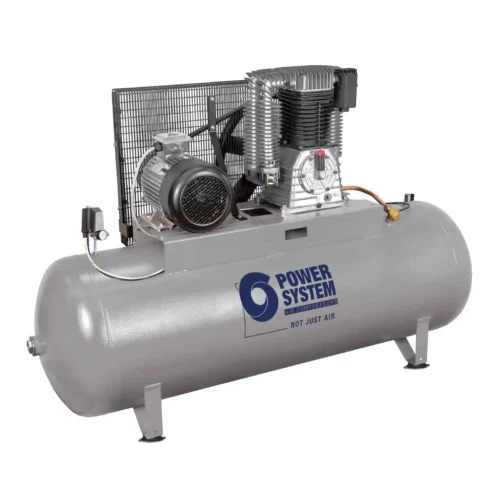

Power System 500 Ltr. 7.5HP 14Bar Air Compressor – PS50/500 AP FT7.5 SD
A two-stage high pressure belt driven compressor with star-delta starter designed for intensive use by professionals, it is equipped with a 7.5 hp pumping unit with highly efficient operation cast iron cylinders with large manifolds for better cooling and robust metal belt covers protecting moving parts. The 500-litre tank for a large air reserve with four sturdy support feet with vibration dampers make it stable in use.
Description
Reviews (0)
| Specification | Value | Unit / Notes |
|---|---|---|
| Product code | SMTN805PWS130 | |
| Model | PS50/500 AP FT7,5 SD | |
| Lubrication | Lubricated | |
| Compressor pump | PS50 | |
| Air receiver | 500 | l |
| Power | 7,5 / 5,5 | Hp / kW |
| Max. pressure | 14 / 203 | bar / p.s.i. |
| Nr. of cylinders | 2 | |
| Air displacement | 805 / 28,4 | l/min. / c.f.m. |
| R.P.M. | 750 | |
| Voltage / Frequency | 400/50 | Volt / Hz |
| Type motor | Electric | |
| Gross weight | 288 / 634,9 | kg / lb |
| Packaging dimensions (L×W×H) | 2270×860×1660 | mm |
| EAN code | 8016738793154 |
