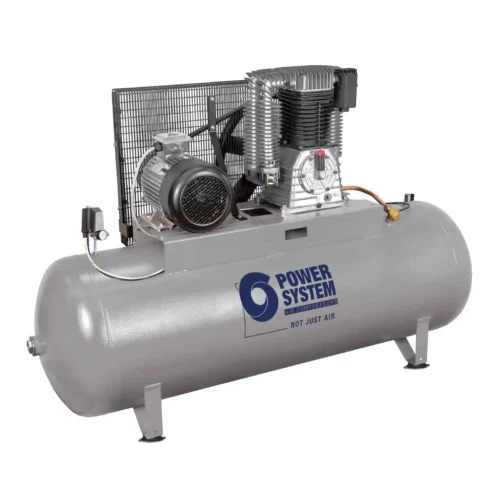

Power System 500 Ltr. 7.5HP 14Bar Air Compressor – PS50/500 AP FT7.5 SD

A two-stage high pressure belt driven compressor with star-delta starter designed for intensive use by professionals, it is equipped with a 7.5 hp pumping unit with highly efficient operation cast iron cylinders with large manifolds for better cooling and robust metal belt covers protecting moving parts. The 500-litre tank for a large air reserve with four sturdy support feet with vibration dampers make it stable in use.

Description
Reviews (0)
SpecificationValueUnit / Notes
Product codeSMTN805PWS130
ModelPS50/500 AP FT7,5 SD
LubricationLubricated
Compressor pumpPS50
Air receiver500l
Power7,5 / 5,5Hp / kW
Max. pressure14 / 203bar / p.s.i.
Nr. of cylinders2
Air displacement805 / 28,4l/min. / c.f.m.
R.P.M.750
Voltage / Frequency400/50Volt / Hz
Type motorElectric
Gross weight288 / 634,9kg / lb
Packaging dimensions (L×W×H)2270×860×1660mm
EAN code8016738793154
