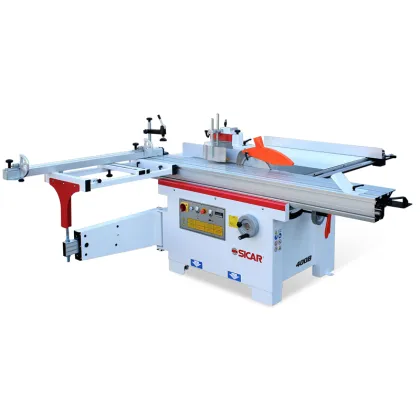

The 400B Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a planer, thicknesser and mottiser unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.
The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.
Several further options are also available, each machine can therefore be tailored to the users specific needs.
| Circular saw |
Unit |
400B |
| Working table |
mm |
326×1112 |
| Shaft rotation speed |
r.p.m. |
4500 |
| Blade diameter |
mm |
300 |
| Blade bora diameter |
mm |
30 |
| Cutting height 90° |
mm |
100 |
| Max. distance between blade and fence |
mm |
730 |
| Blade inclination |
0° |
45° |
| Max cutting height 45° |
mm |
50 |
| Shaft rotation speed engraver |
r.p.m. |
7000 |
| Engraver blade diameter |
mm |
90 |
| Engraver blade bora diameter |
mm |
22 |
| Shaper |
Unit |
400B |
| Working tables |
mm |
326×1112 |
| Shaft rotation speeds |
r.p.m. |
2000/3100/4400/7000 |
| Standard shaft diameter |
mm |
30 |
| Spindle lenght |
mm |
105 |
| Shaft vertical stroke |
mm |
115 |
| Max. tool diameter |
mm |
180 |
| Max. tenoning depth |
mm |
65 |
| Tenoning carriage |
Unit |
400B |
| Carriage dimensions |
mm |
1800×315 |
| Carriage stroke |
mm |
1800/2200 |
| Standard accessories |
Unit |
400B |
| N°2 clamp lever |
|
* |
| Sharper fence |
|
* |
| Service wrenches |
|
* |
| Table extensions with swinging arms |
mm |
860×600 |
| Saw guide |
|
|
| 3-phase motor power |
HP – KW |
4,0 – 3,0 |
| Weight |
kg |
380 |
| Optiona accessories |
Unit |
400B |
| Single-phase motor |
HP – KW |
4,0 – 3,0 |
| Increasing 3-phase motor |
HP – KW |
5,5 – 4,0 |
| Contouring fence |
2200/2200 |
| Carriage stroke |
mm |
| Carriage stroke |
mm |
2600/2600 |
| Tenoning with protection shelf |
|
|
