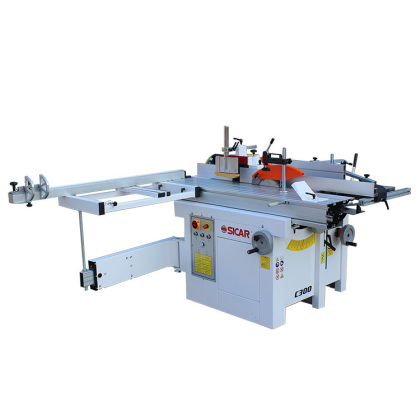

SICAR C300 Planer-Thicknesser-Mortiser-Sliding table saw-Spindle moulder Combined 5 Operations

Description

The C300 Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a table saw and sliding table, planer, thicknesser and spindle moulder unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.

Being a professional standard machine, the C300 of course is fully adjustable and the accuracy is second to none. As far as accuracy goes it will not even be bettered by full sized industrial machines. With three independent class 1 motors providing ample power, changing function can be done with the flick of a switch rather than the going through the laborious task of changing belts.

The saw utilises a sliding beam which runs along side the blade like a panel saw. By running the beam this close to the blade, 100% accuracy is assured.

The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.

Several further options are also available, each machine can therefore be tailored to the users specific needs. These options include; heavy duty morticing unit, spindle moulder ring fence, power feeder and tenoning hood.

PlanerUnitC300
Working tablesmm300×1500
Cutterblock diametermm70
Cutterblock rotation speedr.p.m5700
N. of knivesn°3
knives dimensionsmm300x25x3
Max table adjustementmm4





ShaperUnitC300
Working tablesmm220×1000
Shaft rotation speedsr.p.m.2000/3100/4400/7000
Standard shaft diametermm30 (32/35/50 optional)
Spindle lenghtmm105
Shaft vertical strokemm115
Max. tool diametermm160
Max. tenoning depthmm55





ThicknesserUnitC300
Working tablemm300×660
Feed speedm/1′7
Max. working heightmm220
Min. working heightmm4
Cutterblock rotation speedr.p.m.5700
Max. cutting depthmm4





Tenoning carriageUnitC300
Carriage dimensionsmm1250×315
Carriage strokemm1250/1600



MortiserUnitC300
Working tablemm250×500
Longitudinal strokemm205
Trasversal strokemm95
Vertical strokemm90
Churckmm16
Churck rotation speedr.p.m.5700
Standard accessoriesUnitC300
N°2 clamp lever●
Sharper fence●
Service wrenches●
Mortiser chuck●
Table extensions with swinging armsmm860×600
3 pcs. planing knives●
Planer guide●
Saw guide●
Bridge sefety hood on planer●
3-phase motor powerHP – KW3,0 – 2,2
Weightkg560
Circular sawUnitC300
Working tablemm220×1000
Shaft rotation speedr.p.m.4500
Blade diametermm250
Blade bora diametermm30
Cutting height 90°mm75
Max. distance between blade and fencemm600
Blade inclination0°45°
Max cutting height  45°mm50
Shaft rotation speed engraverr.p.m.7000
Engraver blade diametermm90
Engraver blade bora diametermm22



Optional accessoriesUnitC300
Single-phase motorHP – KW3,0 – 2,2
Increasing 3-phase motorHP – KW4,0 – 3,0
Contouring fence●
Wescott(Chuck)mm16
Carriage strokemm1600/1600
Carriage strokemm1800/1800
Carriage strokemm2200×2200
Tenoning with protection shelf●
