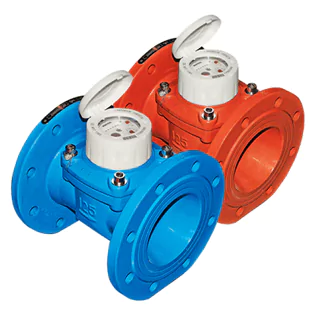

B-Meter WDE-K50 Water Flow Meter
Horizontal Woltmann with removable insert. Sealed counter mechanism with magnetic transmission. Direct reading on numerical counter. Inductive pre-equipment for the installation of data communicating modules wireless OMS M-Bus and non-magnetic pulse output. Used for industry and irrigation, hot or cold water. Resistant to corrosion. Prepared for impulse switch (mountable even after installation). Rotating ring 360°.
Description
Reviews (0)
| DN | 50 (2″) | 65 (2″1/2) | 80 (3″) | 100 (4″) | 125 (5″) | 150 (6″) | 200 (8″) | ||
| Overload flow rate Q4 | m³/h | 50 | 78,75 | 125 | 200 | 200 | 312,5 | 500 | |
| Permanent flow rate Q3 | m³/h | 40 | 63 | 100 | 160 | 160 | 250 | 400 | |
| R=100 H ↑ | Transitional flow rate Q2 | m³/h | 0,64 | 1,008 | 1,6 | 2,56 | 2,56 | 4,0 | 6,4 |
| R=100 H ↑ | Minimum flow rate Q1 | m³/h | 0,40 | 0,63 | 1,00 | 1,60 | 1,60 | 2,5 | 4,0 |
| R=250 H ↑ | Transitional flow rate Q2 | m³/h | 0,256 | 0,403 | 0,64 | 1,024 | 1,024 | 1,60 | 2,56 |
| R=250 H ↑ | Minimum flow rate Q1 | m³/h | 0,16 | 0,252 | 0,40 | 0,64 | 0,64 | 1,00 | 1,60 |
| Minimum reading | l | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 5 | 5 | |
| Maximum reading | m³ | 9.999.999 | 9.999.999 | 9.999.999 | 9.999.999 | 9.999.999 | 9.999.999 | 9.999.999 | |
| Maximum pressure loss at Q3 | bar | 0,25 | 0,40 | 0,25 | 0,40 | 0,40 | 0,16 | 0,40 | |
| Maximum admissible pressure MAP | bar | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
