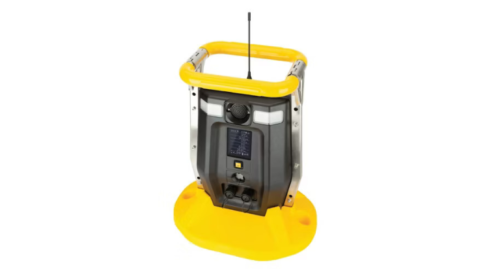

BW HONEYWELL RIGRAT AREA GAS MONITOR
Honeywell BW™ RigRat brings a new level of user-friendliness to transportable multi-gas area monitoring. Simply place the monitor nearby, and it will alert workers to area gas threats so they can take necessary action.
Features & Benefits:
- Wireless Safety Perimeter
- Remote monitoring
- Honeywell TouchPoint Plus Compatible
- Line Power for extended runtime in the field
- Inert mode that prevents alarm in normal ambient air
- Large, easy-to-read display
- Rugged, weatherproof design, with optional protective cage
- I/O ports providing additional input capabilities and local executive activation
Quick Specs:
- 8 weeks of runtime on a single charge
- up to 6 gas sensors
- Programmable input and output
- simple smartphone setup
Specifications
Reviews (0)
Specifications
| Brand: | Honeywell (BW™ Technologies) |
| Series: | BW™ RIGRAT |
| Model Number: | BWRR100P / BWRR100D |
| Dimensions: | 47 × 40 × 29 cm |
| Weight: | 8 kg (17.6 lbs) |
| Display: | TFT LCD (240 × 320 pixels) |
| Alarm: | Visual & Audible |
| Sensor Ports: | 6 |
| Gas Types: | LEL (0–100%LEL), CO2 (0–50000ppm), VOC (0–2000ppm), CO (0–2000ppm), H2S (0–1000ppm), SO2 (0–20ppm), O2 (0–30%vol), NO (0–250ppm), NO2 (0–20ppm), HCN (0–50ppm), NH3 (0–100ppm), Cl2 (0–50ppm) |
| Datalogging: | Up to 4 months (1 min interval) |
| Wireless Connectivity: | Bluetooth, Wi-Fi, BLE, MESH |
| Communication: | Bluetooth & Wi-Fi |
| GPS: | Yes |
| Noise Sensor: | 60 to 125 dB |
| Sampling Range: | Up to 30 m (100 ft) |
| Operating Temperature: | -20°C to 60°C |
| Humidity: | 5–95% RH (Non-condensing) |
| Ingress Protection: | IP65 / IP67 |
| Battery Runtime: | Up to 8 weeks |
| Battery Capacity: | 26.4 Ah |
| Certification: | cETLus Class I Division 1; Group A, B, C, D; T4 |
| Applications: | Confined Space, Fence Line, Routine Maintenance, Turnarounds, Zone Declassification |
| Warranty: | 2 Years |
