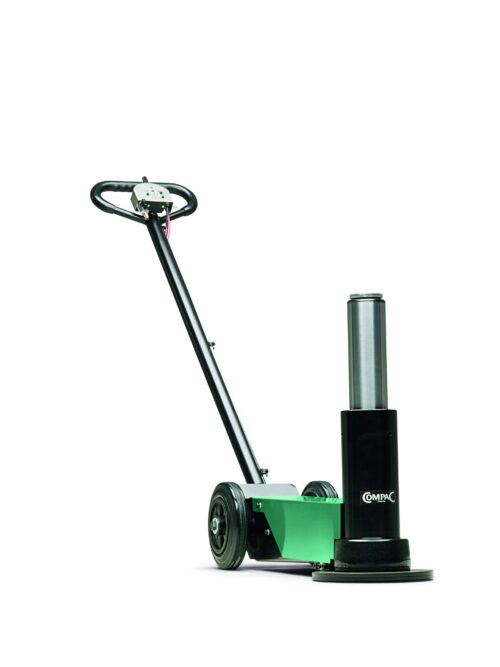

COMPAC TROLLEY JACKS A28-HC
912114-1
- Min. height 350 mm.
- Max. height 580 mm without utilization of the 3 extension.
- Maximum height 780 mm by utilization of the 3 extension.
- Standard extensions: 10, 70 and 120 mm.
- Heavy duty 1-stage cylinder with long lifting stroke.
- Long handle for better reach.
Description
Reviews (0)
Packing Size
| Capacity (T) | 28 |
|---|---|
| Unit weight (kg) | 64 |
| Height (cm) | 160 |
| Length (cm) | 77 |
| Width (cm) | 30 |
| Quantity pr. pallet | 6 |
Dimensions
| Dimension drawing |  |
|---|---|
| Measurement A | 350 |
| Measurement B1 | 580 |
| Measurement B4 | 780 |
| Measurement C | 735 |
| Measurement D | 160 |
| Measurement E | 280 |
| Measurement F | 1230 |
