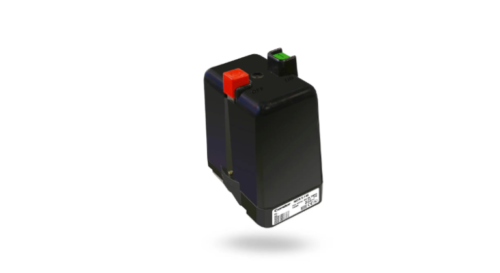

Condor High performance pressure switch MDR 5

The MDR 5 high performance pressure switch has been successfully tested and certified by the KEMA KEUR Test and Certification Institute. Its robust and hard-wearing design ensures a long service life, also under high loads. The MDR-5 high performance pressure switch switch is fitted as standard with the possibility for pressure difference adjustment. A handwheel permits switching point and hysteresis to be adjusted, whereby the cut-out pressure is adjusted with the handwheel in the upper position (the spindle also turns). The cut-in pressure is adjusted with the handwheel in the lower position (the spindle also turns). By selecting a pair of values for cut-in and cut-out pressures, an intersection point is determined in the diagram. If the point lies within the shaded area, this pair of values can be adjusted (without tools) on the pressure switch. If the point lies outside the shaded area, this pair of values cannot be adjusted on the pressure switch.
