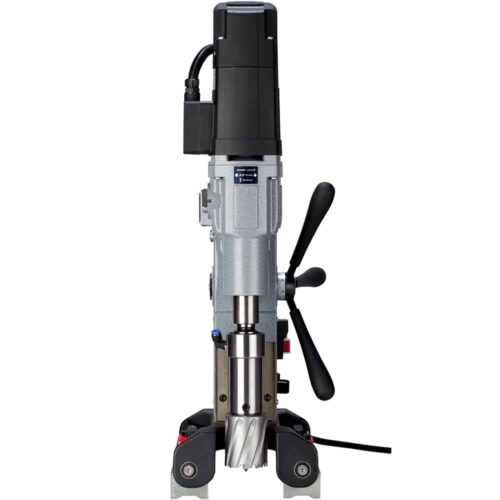

Euroboor TUBE.55S/T Magnetic Drill Machine
Ø 12 – 55 mm / 16 kg

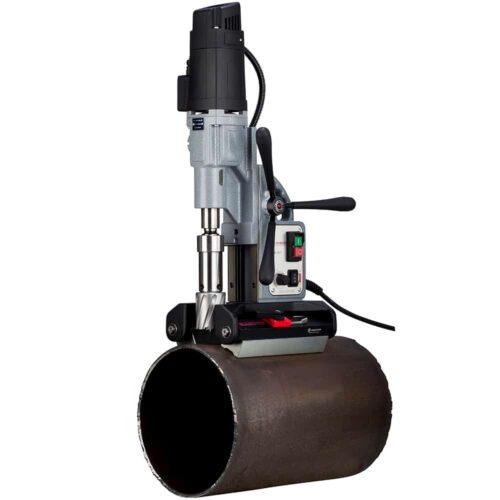

The portable Euroboor TUBE.55S/T magnetic core drilling machine is suitable for both flat and pipe material and for both drilling and tapping. The magnet of this magnetic core drilling machine offers incredibly strong grip, even on steel as thin as 3 mm (1/8″). This magnetic core drilling machine cuts holes in metal up to 55 mm (2″) and can be used on tube material with a diameter of 80 mm (3 1/8″) and larger without any effort because of its pivoting magnet. The TUBE.55S/T benefits from Smart Restart technology, a digital display showing the ideal working load and automatic motor shut-off when displacement in any direction is detected by the GYRO-TEC sensor.
Description
Additional information
Reviews (0)
• Morse Taper 3 spindle with integrated tool cooling and lubrication
• High-accuracy capstan hub
Integrated slide and two- speed oil lubricated gearbox for:
• High accuracy
• Enlarged lifecycle
• Minimal vibration
• Overload protection
• LED load indicators
High precision height adjustment for:
• Low maintenance
• Minimal wear correction

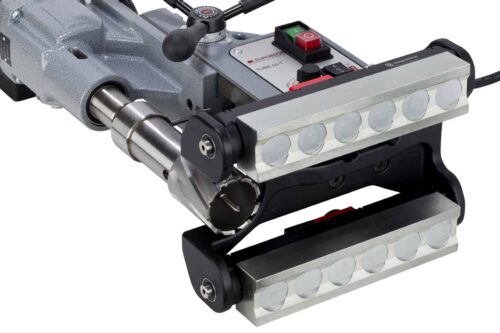

The TUBE.55S/T magnet
The magnet does not require electricity, so all the power goes to the motor. This offers increased safety as the industrial magnetic drill will not release from the target material in the event of an unintentional power loss.
Features:
• No electricity required for magnetic base
• No loss of magnetic grip due to unintentional power loss
• Powerful hold on a wide range of steel thicknesses, curved and flat
• No special attachments needed for flat or curved surfaces
• Highly stable wide stance
• Magnets allow the machine to swing away for hole inspection or debris removal while keeping position
| Annular cutting | Ø 12 – 55 mm |
|---|---|
| Twist drilling | Ø 1 – 23 mm |
| Countersinking | Ø 10 – 60 mm |
| Tapping | M3 – M20 |
| Length | 320 mm |
| Width | 210 mm |
| Height | 523 – 693 mm |
| Stroke | 170 mm |
| Weight | 16 kg |
| Magnet (l x w x h) | 266 x 239 x 82 mm |
| Magnetic force | 900 kg |
| Minimal material thickness | 3 mm |
| Minimal pipe diameter | 80 mm |
| Motor power | 1,600 W |
| Total power | 1,700 W |
| Speed (no load) | (I) 60 – 275 rpm (II) 100 – 500 rpm |
| Speed (load 1,600 W) | (I) 60 – 275 rpm (II) 100 – 500 rpm |
| Spindle (Weldon) | MT3 19.05 mm |
| Voltage | 220 – 240 V / 50 – 60 Hz |
| Case content | 1 x TUBE.55S/T magnetic drilling machine 3 x handles 4 x tap holder (Weldon) M10, M12, M14, M16 (DIN 376) 1 x hex key 2.5 mm 1 x hex key 3 mm 1 x hex key 4 mm 1 x hex key 5 mm 1 x lubrication system 1 x bottle (200 ml) of IBO.10 cutting oil 1 x adapter Weldon 75 mm (IBK.75) 1 x arbor MT 3 – 19.05 Weldon (3/4"), including lubrication ring (IMC.30/19-N) 1 x Morse Taper ejector drift key 1 x user manual 1 x safety ear protection 1 x safety goggles 1 x safety gloves |
