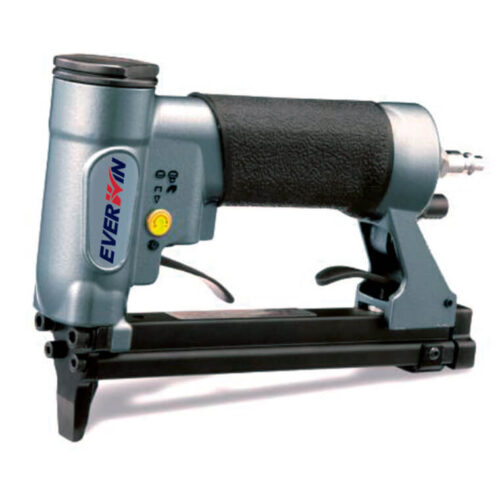

Everwin Pneumatic Upholstery Stapler 16mm (5/8”) (Model no. US7116A)
With quality built for industrial light wire stapling this durable, fine-wire EVERWIN pneumatic stapler is designed for professional performance. Driving staples ranging in length from 5mm to 16mm, this stapler is geared with a speed-adjustment dial that allows users to operate in single-shot mode or full automatic mode with the quickest setting being 20 staples/second.
- APPLICATIONS
- Furniture Upholstery
- Automotive Vinyl
- Trim Carpentry
- House Wrap
Description
Reviews (0)
FEATURES
REAR ADJUSTABLE DIRECTIONAL EXHAUST
Accomodates different working environments
SAFETY OPTION
Optional safety double trigger
RAPID CYCLING ENGINE
Fast cycle time boosts efficiency
SAFETY OPTION
Optional safety double trigger
RAPID CYCLING ENGINE
Fast cycle time boosts efficiency
EAZY-ACCESS MAGAZINE LATCH
One-hand manual rear latch
ALL METAL MEGAZINE
Robust construction endures rough production settings
SPEED-ADJUSTABLE AUTOMATIC VERSION AVAILABLE
Switch between single fire mode and automatic mode with ease on flexible speed settings
EXTRA LONG NOSE AVAILABLE
50mm (2″) nose helps tackle applications with hard-to-reach spots
TOOL SPECIFICATION
| Weight | Standard Magazine: 0.9 kgs (2.0 lbs) Long Magazine (ALM): 1.2 kgs (2.6 lbs) |
|---|---|
| Height | Standard Nose: 140mm (5.5″) Long Nose (LN): 197mm (7.8″) |
| Width | 38mm (1.5″) |
| Length | Standard Magazine: 197mm (7.8″) Long Magazine (ALM): 380mm (15″) |
| Operating Pressure | 5~6.9 bar (70~100 psi) |
| Driving Power (in-lbs @100psi) | 51 |
| Air Consumption (L/sec @90psi) | 0.3 (0.64 cfm) |
FASTENER SPECIFICATION
| Type | 22 GA. 71 Series / Senco C |
|---|---|
| Loading Capacity | 100 ~ 180 |
| Shank Type | Smooth |
| Staple Length | 5~16mm (3/16″~5/8″) |
| Staple Crown Width | 9.1mm (3/8″) |
| Staple Wire Dia. | 0.60×0.75mm (0.024″x0.030″) |
