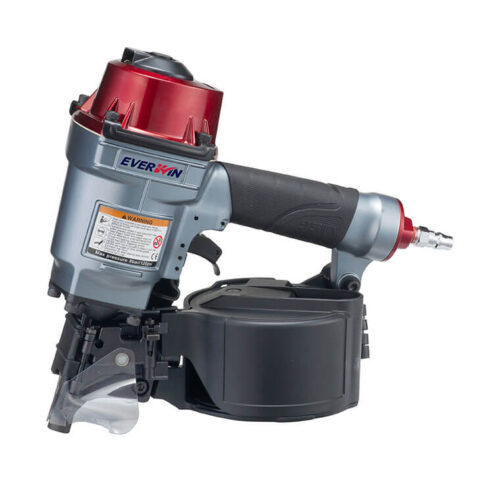

Everwin Wire Coil Nailer 70mm (2-3/4″) (Model No. PN70)
The PN70 Coil Nailer is designed to drive up to a 2-3/4″ nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
- APPLICATIONS
- Pallet Assembly
- Crate Assembly
- Drum Construction
- Mattress Box Assembly
- Manufactured Housing
- Bedding
Description
Reviews (0)
FEATURES
SUFFICIENT DRIVING ENERGY
Powerful for heavy duty applications
HIGH SPEED OPERATION
Actuates up to 15 CYCLES/SECOND /p>
FLEXIBLE TRIGGER OPTIONS
Available with sequential trigger
EXCLUSIVE COMPONENT TREATMENT
Special-treated driver and safety
SUFFICIENT DRIVING ENERGY
Powerful for heavy duty applications
DEPTH ADJUSTMENT ACCESSORY AVAILABLE
Optional heavy duty depth adjustable safety
METAL NAIL TRAY
extremely reliable and wear-proof
METAL BODY PROTECTOR
helps prevent drag and tear wear on the tool frame
TOOL SPECIFICATION
| Weight | 3.6 kgs (7.9 lbs) |
|---|---|
| Height | 315mm (12.5″) |
| Width | 128mm (5″) |
| Length | 306mm (12″) |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power (in-lbs @100psi) | 712 |
| Air Consumption (L/sec @90psi) | 1.7 (3.6 cfm) |
FASTENER SPECIFICATION
| Type | 15° Wire Collated Nails |
|---|---|
| Loading Capacity | 225~300 |
| Shank Type | Smooth, Screw or Ring |
| Nail Length | 45~70mm (1-3/4″~2-3/4″) |
| Nail Head Dia. | 5.7~7.2mm (0.224″~0.283″) |
| Nail Shank Dia. | 2.3~2.9mm (0.092″~0.113″) |
