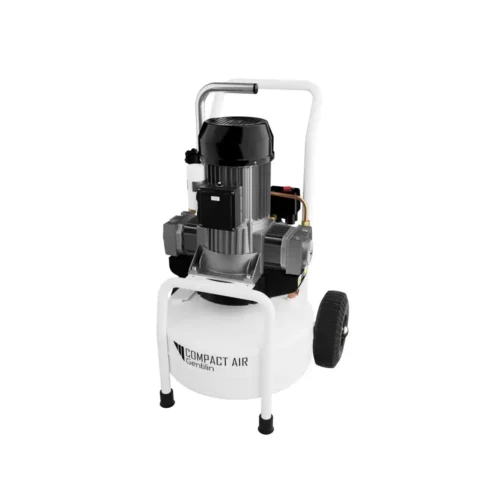

Gentilin 24L 2.2 kW Portable Air Piston Compressor Pro-S – CSK330/24
Description
Reviews (0)
Technical Data
| Condensate Treatment | – |
|---|---|
| Particulate Treatment | – |
| Air purity class (ISO 8573-1) | X-X-0 |
| Voltage (V) | 230,00 |
| Frequency (Hz) | 50,00 |
| Nominal rating (kW) | 2,20 |
| Nominal rating (HP) | 3,00 |
| Rotation speed (rpm) | 1.400,00 |
| Starting current (A) | 9,60 |
| Number of cylinders | 2 |
| FAD (L/min) | 330,00 |
| Air Delivery (L/min @5 bar) | 200,00 |
| Air Delivery (L/min @8 bar) | 170,00 |
| Maximum pressure (bar) | 10,00 |
| Noise level (3,00m @ 5,00 bar (dB(A)) | 68,00 |
| Duty cycle | S1 100% |
| Tank Coating | Epodissica |
| Tank capacity (lt) | 24,00 |
| First Maintenance (hours) | 3000 |
| Hour Meter | No |
| Tank Automatic Drain Valve | No |
Product dimensions
| Lenght (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 550,00 | 480,00 | 790,00 | 36,00 |
Single piece packaging dimensions
| Lenght (mm) | Width (mm) | Height (mm) | Weight (Kg) |
|---|---|---|---|
| 800,00 | 600,00 | 700,00 | 45,00 |
Full pallet packaging dimensions
| Dimensions (mm) | Weight (Kg) | Pieces |
|---|---|---|
| 800x1200x1650 | 270,00 | 6 |
