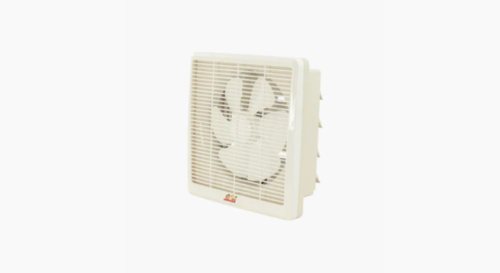

GFC Metal Exhaust Square
- Dynamically balanced impellers for smooth & vibration-free operation.
- Turbo profile blades for higher air delivery & rigid frame with rubber mountings for silent operation.
- Totally enclosed, highly efficient heavy duty motor designed to suit voltage/supply fluctuation.
- Epoxy enamel coating with specially pre-treated components for better resistance to corrosion and acid alkali fumes.
- Size avaliable in 6″, 8″, 10″, 12″, 14″, 16″ and 18″
- Pressure die casted aluminum rotor mounted on pre-lubricated double ball bearing for maintenance free running.
General Specifications
Technical Specifications
Reviews (0)
General Specifications
| Type | Blades | Sweep | Warranty |
|---|---|---|---|
| Capacitor | 4 | 150mm | Yes |
| Capacitor | 4 | 200mm | Yes |
| Capacitor | 4 | 250mm | Yes |
| Capacitor | 4 | 300mm | Yes |
| Capacitor | 4 | 350mm | Yes |
| Capacitor | 4 | 400mm | Yes |
| Capacitor | 4 | 450mm | Yes |
| Capacitor | 4 | 500mm | Yes |
| Capacitor | 4 | 600mm | Yes |
Technical Specifications
| RPM | Air Delivery | Power | Service Value |
|---|---|---|---|
| 1350 | 11 m3/min | 35 Watts | 11.01 ft3/min/Watt |
| 1350 | 13 m3/min | 40 Watts | 12.27 ft3/min/Watt |
| 1350 | 17 m3/min | 50 Watts | 12 ft3/min/Watt |
| 1350 | 21 m3/min | 50 Watts | 15 ft3/min/Watt |
| 1350 | 42 m3/min | 90 Watts | 16.67 ft3/min/Watt |
| 1350 | 42 m3/min | 90 Watts | 16.67 ft3/min/Watt |
| 1200 | 71 m3/min | 105 Watts | 23.81 ft3/min/Watt |
| 1200 | 109 m3/min | 155 Watts | 24.64 ft3/min/Watt |
| 1000 | 133 m3/min | 185 Watts | 25.46 ft3/min/Watt |
