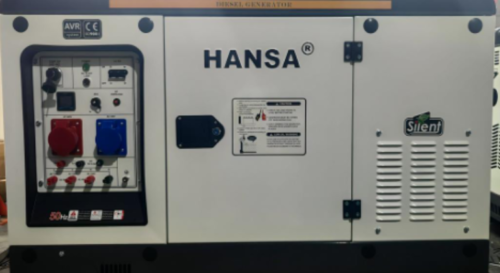

HANSA GENERATOR HG23000SE3

Generator

• Frequency: 50 Hz
• Max. Output: 18 kW / kVA
• Rated Output: 16 kW / kVA
• Rated AC Voltage: 230/400 V
• Power Factor: 0.8
• DC Output: 12V / 8.3A
• Phase: Three Phase
• Alternator Type: Self-Excited, 2-Pole Alternator
• Starting System: Electric
• Noise Level: 78–82 dB(A) @ 7 m
• Fuel Tank Capacity: 30 L
• Continuous Running Time: 7 Hours

Engine

• Engine Model: 2V98FD
• Engine Type: Two-Cylinder, V-Type, 4-Stroke Air-Cooled Diesel Engine
• Displacement: 1326 cc
• Bore × Stroke: 98 × 88 mm
• Fuel Consumption Rate: ≤240 g/kW·h
• Fuel: 0# (Summer), -10# (Winter), -20# (Cold Winter), -35# (Severe Cold Winter) Light Diesel Oil
• Lubrication Oil Volume: 4 L
• Rated Engine Output: 20 kW
• Max. Engine Output: 19 kW
• Combustion System: Direct Injection

Dimensions

• Packing Dimensions (L × W × H): 1330 × 830 × 930 mm
• Net Weight: 350 kg
• 20FT Loading Capacity: 22 pcs
• 40HQ Loading Capacity: 46 pcs
