| Model | LCB-1B |
|---|---|
| Max Airflow | 9500 M³/H |
| Effective Area | 30-55 M² |
| Rated Voltage/Frequency | 220-240 V, 50/60 Hz |
| Power | 340 W |
| Weight | 32 KG |
| Water Capacity | 60 L |
| Water Consumption | 4-6 L/H |
| Noise | 53/58/63 |
| Dimension | 890*490*1440 MM |

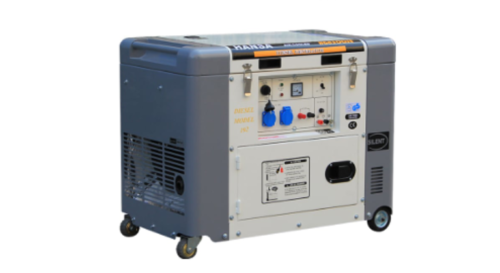

Specifications
Rated Frequency: 50 Hz
Rated Output: 6 kVA
Max. Output: 6.5 kVA
Rated Voltage: 220 V
Rated Current: 27.3 A
Rated Rotation Speed: 3000 rpm
Phase: Single Phase
Power Factor (cosΦ): 1
DC Output: 12V / 8.3A
Alternator Type: Self-Excited, 2-Pole, Single Phase Alternator
Starting System: Electric
Noise Level (at 7 m): 70–75 dB
Fuel Tank Capacity: 16 L
Continuous Working Time: 6 Hours
Engine Model: HR192FB
Engine Type: Single-Cylinder, Vertical, 4-Stroke Air-Cooled Diesel Engine
Bore × Stroke: 92 × 75 mm
Fuel: 0# or -10# Light Diesel Oil
Lubrication Oil Volume: 1.65 L
Combustion System: Direct Injection
Voltmeter: Yes
AC Output Socket: 2
AC Circuit Breaker: Yes
Oil Warning Light: Yes
Oil Alert: Yes
DC Circuit Breaker: Yes
30Ah Battery: Yes
36Ah Battery: Optional
Calculagraph: Optional
Big Wheel: Optional
Current Meter: Optional
ATS: Optional
Digital Panel: Optional
Remote Control: Optional
Welding: No
Dimensions (L × W × H): 920 × 560 × 760 mm
Net Weight: 155 kg
20FT Loading Capacity: 72 pcs
40HQ Loading Capacity: 156 pcs
