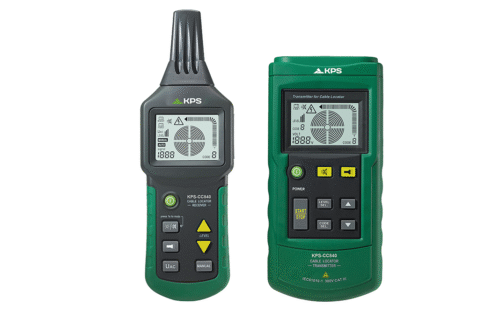

KPS CC840 – WIRE TRACER
| Features | |
| – | Find the Beaks or Shorts in Cable in the wall or Earth |
| – | Track Cables in the wall or Earth |
| – | Find the Fuse and Safeguard |
| – | Find the Beaks or Shorts in Conduit under the Floor |
| – | Sensitivity of Receiver can be selected |
| – | Auto Ranging |
| – | Auto Power Off |
| – | Backlight and Worklight |
Description
Reviews (0)
| Technical Parameters of Transmitter | |
| Output Signal | 125kHz |
| External Voltage | DC12~400V AC12~400V(50~60Hz) ±2.5% |
| Fuse | F0.5A 1000V |
| MIN Current | about 31mA |
| MAX Current | about 115mA |
| In Work | 0~40℃, with MAX relative humidity of 80% |
| In Storage | -20~60℃, with MAX relative humidity of 80% |
| Altitude | <2000m> |
| Technical Parameters of Receiver | |
| Depth of Tracking | The Depth of Tracking Depends on the Material and Specific Applications |
| Cable | Single pole application: about 0~2m |
| Locating | Dual pole application: about 0~0.5m |
| Mode | Single loop line: Up to 2.5m |
| MIN Current | about 32mA |
| MAX Current | about 89mA |
| In Work | 0~40℃, with MAX relative humidity of 80% |
| In Storage | -20~60℃, with MAX relative humidity of 80% |
| Altitude | <2000m> |
