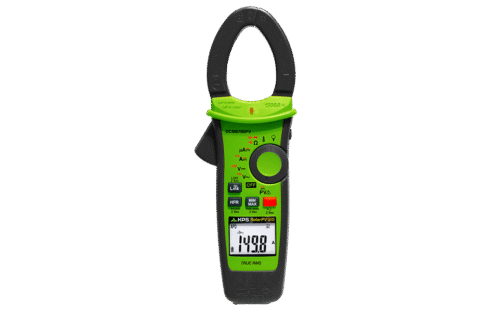

KPS DCM8700PV – 1500A AC/DC Clamp Meter PV
| Solar Clamp Meter | |
| The model DCM8700PV is especially suitable for all PV installation sizes thanks to its large capability for DC Voltage measurements (up to 2000Vdc) Moreover, its PV Voltage mode reinforces the safety of the user during the measurement thanks to the special PV test leads. | |
| Features | |
| – | AC/DC Voltage, AC current, resistance, frequency, capacitance and temperature measurements |
| – | True Root Mean Square (TRMS) measurement |
| – | Continuity buzzer and diode test |
| – | Non-Contact Voltage detection |
| – | Autoranging |
| – | Wireless connection with app |
| – | Bar graph and dual display |
| – | 6,000 counts |
| – | Max/Min functions |
| – | Peak function |
| – | Relative function |
| – | Auto power OFF and low battery display |
| – | CAT IV 600V according to EN 61010 |
Description
Reviews (0)
| Function | Range | OL Reading | Resolution | Accuracy |
| DC mV | 600.0mV | 660.0mV | 0.1mV | ±(0.7% + 5D) |
| DC Voltage | 600.0V | 660.0V | 0.1V | ±(0.7% + 2D) |
| 1000V | 1100V | 1V | ||
| AC Voltage | 600.0V | 660.0V | 0.1V | ±(1.0% + 5D) |
| 1000V | 1100V | 1V | ||
| PV DC Voltage | 600.0V | 660.0V | 0.1V | ±(2.0% + 5D) |
| 2000V | 2200V | 1V | ||
| PV AC Voltage | 600.0V | 660.0V | 0.1V | ±(2.0% + 5D) |
| 1500V | 1600V | 1V | ||
| AC/DC μA | 400.0μA | 440.0μA | 0.1μA | ±(1.0% + 3D) |
| 4000μA | 4400μA | 1μA | ||
| DC Current | 60.00A | 66.00A | 0.01A | ±(2.0% + 5D) |
| 600.0A | 660.0A | 0.1A | ||
| 1500A | 1550A | 1A | ||
| AC Current | 60.00A | 66.00A | 0.01A | ±(2.0% + 5D) |
| 600.0A | 660.0A | 0.1A | ||
| 1500A | 1550A | 1A | ||
| Frequency | 100.00Hz | 100.00Hz | 0.01Hz | ±(0.3% + 3D) |
| 1000.0Hz | 1000.0Hz | 0.1Hz | ||
| 10.000kHz | 10.000kHz | 0.001kHz | ||
| Resistance | 600.0Ω | 660.0Ω | 0.1Ω | ±(0.9% + 5D) |
| 6.000kΩ | 6.600kΩ | 0.001kΩ | ±(0.9% + 2D) | |
| 60.00kΩ | 66.00kΩ | 0.001kΩ | ||
| 600.0kΩ | 660.0kΩ | 0.1kΩ | ||
| Diode | 1.500V | 1.550V | 0.001V | ±(0.9% + 2D) |
| Capacitance | 100.0μF | 110.0μF | 0.1μF | ±(1.9% + 2D) |
| 1000μF | 1100μF | 1μF | ||
| Temperature | -40.0°C~400.0°C | 440.0°C | 0.1°C | ±(1% + 20D) |
| -40.0°F~752.0°F | 824.0°F | 0.1°F | ±(1% + 36D) |
