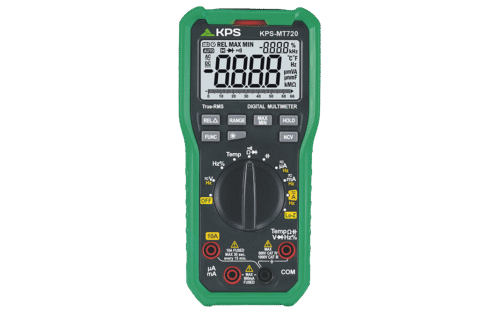

KPS MT720 – 1000V Digital Multimeter
| Features | |
| – | Display 6600 counts |
| – | Auto Ranging |
| – | Manual Ranging |
| – | Auto Power Off |
| – | Relative Measurement |
| – | Non-Contact Voltage Detector |
| – | Diode Open Voltage 3.2V |
| – | Continuity Buzzer <50Ω |
| – | MAX/MIN |
| – | Data Hold |
| – | Low Battery Display |
| – | Display Backlight |
| – | True Root Mean Square |
| – | Low Impedance Input Mode |
Description
Reviews (0)
| Specifications | Range | Resolution | Accuracy |
| DC Voltage | 660mV | 0.1mV | ±(0.8%+3) |
| 6.6V/66V/660V | 1mV/10mV/0.1V | ±(0.5%+5) | |
| 1000V | 1V | ±(0.8%+3) | |
| AC Voltage | 660mV(40~60Hz) | 0.1mV | ±(1.5%+5) |
| 6.6V/66V(40~400Hz) | 1mV/10mV | ±(1.2%+5) | |
| 660V/1000V(40~400Hz) | 0.1V/1V | ±(1.0%+3) | |
| DC Current | 660μA/6600μA/66mA/660mA | 0.1μA/1μA/10μA/0.1mA | ±(1.0%+5) |
| 10A | 10mA | ±(2.0%+5) | |
| AC Current | 660μA/6600μA/66mA/660mA | 0.1μA/1μA/0.01mA/0.1mA | ±(1.5%+5) |
| 10A | 10mA | ±(3.0%+5) | |
| Resistance | 660Ω/6.6kΩ/66kΩ/660kΩ/6.6MΩ | 0.1Ω/1Ω/10Ω/100Ω/1kΩ | ±(0.8%+5) |
| 66MΩ | 0.1MΩ | ±(1.5%+5) | |
| Capacitance | 6.6nF | 1pF | ±(4.0%+5) |
| 66nF/660nF/6.6μF/66μF/660μF | 10pF/0.1nF/1nF/10nF/0.1μF | ±(3.0%+3) | |
| 6.6mF/66mF | 1μF/10μF | ±(4.0%+5) | |
| Frequency (V) | 66Hz/660Hz/6.6kHz/10kHz | 0.01Hz/0.1Hz/1Hz/10Hz | ±(1.5%+5) |
| Frequency(Hz) | 66Hz/660Hz/6.6kHz/66kHz/ | 0.01Hz/0.1Hz/1Hz/10Hz/ | ±(1.5%+5) |
| 660kHz/6.6MHz/66MHz | 0.1kHz/1kHz/10kHz | ||
| Duty Cycle | 1%~99.9% | 0.10% | ±(2.0%) |
| Temperature | 0~1000℃/32~1832℉ | 1℃/1℉ | ±(1.0%+3) |
