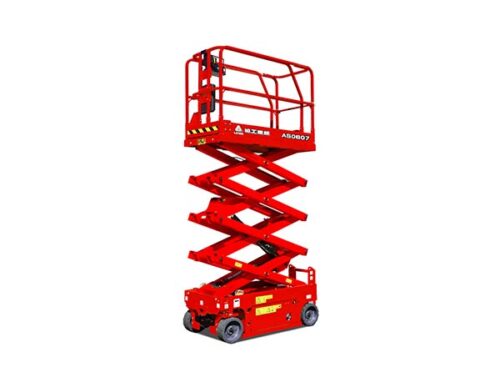

LGMG AS0607W Aerial Work Platforms
Lift Capacity:
227kg
Max. Working Height:
5.6m
Description
Reviews (0)
Product Feature
Most durable and reliable scissor stacks
Most durable and reliable scissor stacks
Reinforced working platform
Advanced charger with voltage protection
Higher driver comfort and security
Product Parameter
| Model | AS0607W | AS1932 |
|---|---|---|
| Platform Capacity | 230 kg | 510 lbs |
| Capacity On Deck Extension | 120 kg | 260 lbs |
| Platform Occupants | 2 | 2 |
| Work Height(A+2) | 7.8 m | 25ft7in |
| Overall Length(B) | 1.83 m | 6ft |
| Overall Width(C) | 0.81 m | 2ft8in |
| Overall Height – Rails Down | 1.82m | 6ft |
| Overall Height – Rails Up | 2.12m | 6ft11in |
| Platform Extension | 0.9 m | 3ft |
| Drive Speed (Lowered/Elevated) | 3.5/0.8 km/h | 2.17/0.5 mph |
| Lift/Lower Time | 16/28 sec | 16/28 sec |
| Gradeability | 25% | 25% |
| Max. Slope | 1.5°/3° | 1.5°/3° |
| Machine Weight | 1,600 kg | 3530 lbs |
