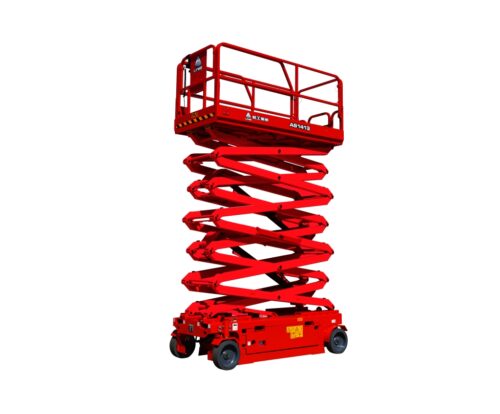

LGMG AS1413 Aerial Work Platforms
Lift Capacity:
320kg
Max. Working Height:
15.8m
Description
Reviews (0)
Product Feature
The platform can intelligently lift double loads. The load that 10-14m high platforms lift is rated at 200kg and the load that under-10m high platforms lift is rate at 320kg.
A complete machine can intelligently lift double loads. The load that 10-14m high platforms lift is rated at 200kg and the load that under-10m high platforms lift is rate at 320kg.
The work platform structure has been optimized and become more suitable for China’s harsh environment. The scissor frame adopts low-alloy and high-strength structural steel.
Both inside and outside scissor structures are frameworks of good rigidity, high bearing capacity, high stability and light weight and are easy to install. This structure has high forward stability and can be equipped with a two-way platform.
Electrical and hydraulic components are separately installed to enhance electrical safety of the complete platform.
GPS positioning devices are equipped which can carry out data transmission and platform positioning, making it easy to manage the platform.
Product Parameter
| Model | AS1413 | AS4650 |
|---|---|---|
| Platform Capacity | >10 m 200kg <10m 320kg | >32ft10in 440 lbs <32ft10in 710 lbs |
| Capacity On Deck Extension | 113 kg | 250 lbs |
| Platform Occupants | 2 | 2 |
| Work Height(A+2) | 15.8 m | 51ft10in |
| Overall Length(B) | 2.79 m | 9ft2in |
| Overall Width(C) | 1.27 m | 4ft2in |
| Overall Height – Rails Down | 2.27 m | 7ft5in |
| Overall Height – Rails Up | 2.78m | 9ft1in |
| Platform Extension | 0.9 m | 3ft |
| Drive Speed (Lowered/Elevated) | 3.5/0.8 km/h | 2.17/0.5 mph |
| Lift/Lower Time | 80/65 | 80/65 |
| Gradeability | 25% | 25% |
| Max. Slope | 1.5°/3° | 1.5°/3° |
| Machine Weight | 3,500 kg | 7720 lbs |
