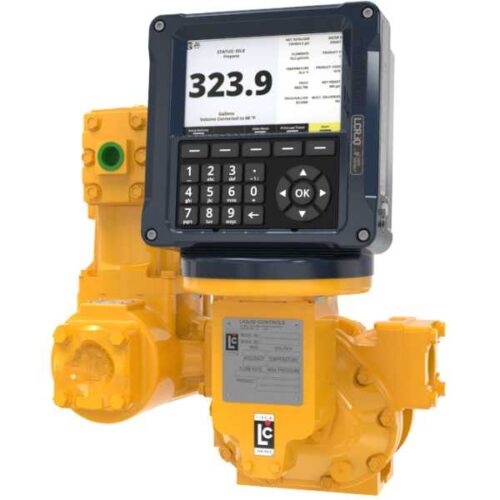

Liquid Controls M7 — 2″ LC Meter (500 LPM)
Rating: 500 LPM, 150 psi (10.3 bar, 1034 kPa)
Flange: 1-1/2″, 2″
Meter Construction: Aluminum or Stainless Steel
Seals: Buna/Viton®/EPDM as noted by catalog number
Maximum Pressure: 150psi (as listed by catalog number)
Temperature: -40° to 185° F
Description
Reviews (0)
Specification
| Meter Classes | Description | Bearing Material |
|---|---|---|
| 1 | Refined petroleum products | Ni-Resist* |
| 2 | Aviation and jet fuel | Ni-Resist* |
| 3 | Liquid sugars, sweeteners, syrups, vegetable oils | Ni-Resist* |
| 4 | Treated waters and solvents where no red metals are allowed | Carbon |
| 8 | Acid pH liquids including: Nitric acid, phosphoric acid, glacial acetic acids, citric juices, vinegar | Carbon** |
| 14 | Crude oil | Ni-Resist |
| 16 | General solvents | Carbon |
| 18 | Diesel exhaust fluid (DEF) | Ni-Resist |
*carbon bearings are standard on some meter sizes of this class, please consult factory.
*Teflon bearings optional on some meter sizes, please consult factory.
Class 1 Meters
| M7A1 METER WITH REGISTERATION | ||||||
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | SOFTWARE | W&M APPROVAL | |
| LCR.IQ® REGISTRATION | ||||||
| M7A1-LCR.iQ-I#1 | L-R | LITRES | VITON® | N/A | NIST | |
| LCR®-II REGISTRATION | ||||||
| M7A1-LCR2-I#1 | L-R | 1/10 WH GAL | BUNA | SL200 ST200 | NIST | |
| MECHANICAL REGISTRATION | ||||||
| M7A1-MECH-NP#1 | L-R | 1/10 GAL | BUNA | N/A | NIST | |
| M7A1-MECH-NP#2 | L-R | WH GAL | BUNA | N/A | NIST | |
| M7A1-MECH-NP#6 | R-L | 1/10 GAL | BUNA | N/A | NIST | |
| M7A1-MECH-WP#3* | L-R | 1/10 GAL | VITON® | N/A | NIST | |
| SETUP FOR ELECTRONIC REGISTRATION | ||||||
| M7A1-SUFE#1 | L-R | LITRES | BUNA | N/A | CAN | |
| M7A1-SUFE#2 | L-R | 1/10 GAL | BUNA | N/A | NIST | |
M7B1 METER WITH REGISTER + STRAINER
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | STRAINER TYPE | MESH | W&M APPROVAL | |
| MECHANICAL REGISTRATION | |||||||
| M7B1-MECH-NP#1 | L-R | LITRES | BUNA | STD | 40 | OIML | |
| POD (PULSE OUTPUT DEVICE) | |||||||
| M7B1-POD#1 | L-R | 1/10 GAL | VITON® | STD | 40 | NIST | |
M7C1 METER WITH REGISTER + STRAINER + AIR ELIMINATOR
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | STRAINER TYPE | MESH | AIR ELIM. | CHECK VALVE | TEMP. COMP. | SOFTWARE | W&M | |
| LCR.iQ® REGISTRATION | |||||||||||
| M7C1-LCR.IQ-I#1 | L-R | 1/10 GAL | BUNA | HI CAP | 40 | MECH | METAL INLET | N/A | N/A | NIST | |
| M7C1-LCR.IQ-I#2 | L-R | WH GAL | BUNA | STD | 40 | MECH | N/A | N/A | N/A | NIST | |
| M7C1-LCR.IQ-I#3 | L-R | WH GAL | VITON® | HI CAP | 40 | MECH | METAL INLET | N/A | N/A | NIST | |
| M7C1-LCR.IQ-I#4 | L-R | 1/10 GAL | VITON® | HI CAP | 40 | OPTICAL | N/A | N/A | N/A | NIST | |
| M7C1-LCR.IQ-I#5 | L-R | LITRES | VITON® | HI CAP | 40 | MECH | METAL INLET | N/A | N/A | NIST | |
| M7C1-LCR.IQ-I#6 | L-R | LITRES | VITON® | STD | 40 | MECH | N/A | N/A | N/A | NIST | |
| M7C1-LCR.IQ-I#7 | L-R | LITRES | BUNA | STD | 40 | MECH | N/A | N/A | N/A | OIML | |
| M7CX1-LCR.iQ-I#1 | L-R | LITRES | VITON® | HI CAP | 20 | MECH | SOFT OUTLET | N/A | N/A | CAN | |
M7C1 METER WITH REGISTER + STRAINER + AIR ELIMINATOR
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | STRAINER TYPE | MESH | AIR ELIM. | CHECK VALVE | TEMP. COMP. | SOFTWARE | W&M APPROVAL | |
| LCR®-II REGISTRATION | |||||||||||
| M7C1-LCR2-I#1 | L-R | 1/10 GAL | BUNA | HI CAP | 40 | MECH | METAL INLET | N/A | SL200 ST200 | NIST | |
| M7C1-LCR2-I#2 | L-R | 1/10 GAL | BUNA | STD | 40 | MECH | N/A | N/A | SL200 ST200 | NIST | |
| M7C1-LCR2-I#3 | L-R | 1/10 GAL | VITON® | STD | 40 | MECH | N/A | N/A | SL200 ST202 | NIST | |
| M7C1-LCR2-I#5 | L-R | LITRES | BUNA | STD | 40 | MECH | N/A | N/A | SL201 ST204 | NIST | |
| M7C1-LCR2-I#11 | L-R | 1/10 GAL | VITON® | STD | 40 | OPTICAL | N/A | N/A | SL200 ST202 | NIST | |
| M7C1-LCR2-I#13 | L-R | 1/10 GAL | BUNA | STD | 20 | MECH | SOFT INLET | N/A | SL200 ST258 | NIST | |
| M7CT1-LCR2-I#1 | L-R | WH GAL | BUNA | STD | 20 | MECH | N/A | YES | SL200 ST258 | NIST | |
| M7CX1-LCR2-I#1 | L-R | LITRES | VITON® | HI CAP | 20 | MECH | SOFT OUTLET | N/A | SL202 ST201 | CAN | |
| LCR®600 REGISTRATION | |||||||||||
| M7C1-LCR600-E#1 | L-R | 1/10 GAL | BUNA | STD | 20 | MECH | N/A | N/A | SL600 ST600 | NIST | |
| M7C1-LCR600-E#2 | L-R | 1/10 GAL | BUNA | HI CAP | 20 | MECH | METAL INLET | N/A | SL600 ST662 | NIST | |
| M7C1-LCR600-I#2 | R-L | WH GAL | BUNA | STD | 40 | MECH | METAL INLET | N/A | SL600 ST600 | NIST | |
| M7C1-LCR600-I#3 | L-R | 1/10 GAL | BUNA | STD | 40 | MECH | N/A | N/A | SL600 ST600 | NIST | |
| M7CT1-LCR600-E#1 | R-L | 1/10 GAL | BUNA | STD | 20 | MECH | METAL INLET | YES | SL600 ST662 | NIST | |
| M7CT1-LCR600-E#1 | R-L | 1/10 GAL | BUNA | STD | 20 | MECH | METAL INLET | YES | SL600 ST662 | NIST | |
M7C1 CONTINUED
METER WITH REGISTER + STRAINER + AIR ELIMINATOR
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | STRAINER TYPE | MESH | AIR ELIM. | CHECK VALVE | SOFTWARE | W&M APPROVAL | |
| LESS MECHANICAL REGISTER | ||||||||||
| M7C1-LR#1 | L-R | 1/10 GAL | VITON® | STD | 40 | MECH | N/A | N/A | NIST | |
| M7C1-LR#2 | L-R | 1/10 GAL | BUNA | STD | 40 | MECH | N/A | N/A | NIST | |
| M7C1-LR#3 | L-R | LITRES | VITON® | STD | 40 | MECH | N/A | N/A | OIML | |
| M7C1-LR#8 | L-R | LITRES | VITON® | STD | 40 | MECH | N/A | N/A | AUST | |
| MECHANICAL REGISTRATION | ||||||||||
| M7C1-MECH-NP#1 | L-R | LITRES | BUNA | STD | 40 | MECH | N/A | N/A | OIML | |
| M7C1-MECH-NP#2 | L-R | 1/10 GAL | BUNA | STD | 40 | MECH | N/A | N/A | NIST | |
| M7C1-MECH-NP#3 | L-R | 1/10 GAL | BUNA | STD | 20 | MECH | N/A | N/A | NIST | |
| M7C1-MECH-NP#4 | L-R | IMP GAL | BUNA | STD | 40 | MECH | N/A | N/A | OIML | |
| M7C1-MECH-NP#5 | L-R | 1/10 GAL | BUNA | STD | 40 | MECH | SOFT OUTLET | N/A | NIST | |
| M7C1-MECH-NP#6 | L-R | LITRES | BUNA | STD | 40 | MECH | N/A | N/A | NIST | |
| M7C1-MECH-NP#7 | L-R | LITRES | VITON® | STD | 40 | MECH | N/A | N/A | OIML | |
| M7C1-MECH-NP#8 | L-R | 1/10 GAL | VITON® | STD | 40 | MECH | N/A | N/A | NIST | |
| M7C1-MECH-NP#9 | L-R | 1/10 GAL | BUNA | HI CAP | 40 | MECH | SOFT OUTLET | N/A | NIST | |
| M7C1-MECH-NP#11 | R-L | LITRES | VITON® | STD | 40 | MECH | METAL INLET | N/A | CANADA | |
| M7C1-MECH-NP#13 | L-R | LITRES | BUNA | STD | 40 | MECH | N/A | N/A | CANADA | |
| M7C1-MECH-NP#16 | L-R | IMP GAL | BUNA | STD | 40 | MECH | N/A | N/A | NIST | |
| M7CX1-MECH-NP#2 | L-R | LITRES | BUNA | HI CAP | 40 | MECH | N/A | N/A | OIML | |
| POD (PULSE OUTPUT DEVICE) | ||||||||||
| M7C1-POD#1 | L-R | 1/10 GAL | BUNA | STD | 40 | MECH | N/A | N/A | NIST | |
| M7C1-POD#2 | L-R | 1/10 GAL | BUNA | HI CAP | 40 | MECH | METAL INLET | N/A | NIST | |
| SETUP FOR ELECTRONIC REGISTRATION | ||||||||||
| M7C1-SUFE#1 | R-L | 1/10 GAL | BUNA | STD | 40 | MECH | N/A | N/A | NIST | |
| M7C1-SUFE#2 | L-R | 1/10 GAL | BUNA | STD | 40 | MECH | N/A | N/A | NIST | |
| M7C1-SUFE#3 | L-R | 1/10 GAL | BUNA | HI CAP | 40 | OPTICAL | METAL INLET | N/A | NIST | |
| M7C1-SUFE#4 | L-R | 1/10 GAL | BUNA | HI CAP | 40 | OPTICAL | SOFT INLET | N/A | NIST | |
| M7C1-SUFE#5 | L-R | 1/10 GAL | BUNA | HI CAP | 40 | MECH | N/A | N/A | NIST | |
| M7C1-SUFE#8 | L-R | LITRES | BUNA | STD | 40 | MECH | N/A | N/A | AUST | |
| M7CX1-SUFE#1 | L-R | 1/10 GAL | BUNA | HI CAP | 40 | MECH | METAL INLET | N/A | NIST | |
M7E1
METER WITH REGISTER + PRINTER
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | PRINTER TYPE | W&M APPROVAL | |
| MECHANICAL REGISTRATION | ||||||
| M7E1-MECH-NP#1 | L-R | 1/10 GAL | BUNA | FACE DOWN | NIST | |
M7G1
METER WITH REGISTER + STRAINER + AIR ELIMINATOR + PRINTER
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | STRAINER TYPE | STRAINER MESH | AIR ELIM. | CHECK VALVE | PRINTER TYPE | W&M APPROVAL | |
| MECHANICAL REGISTRATION | ||||||||||
| M7G1-MECH-NP#1 | L-R | 1/10 GAL | BUNA | STD | 40 | MECH | SOFT OUTLET | FACE DOWN | NIST | |
| M7G1-MECH-NP#2 | R-L | 1/10 GAL | BUNA | STD | 40 | MECH | SOFT OUTLET | FACE DOWN | NIST | |
| M7G1-MECH-NP#6 | L-R | LITRES | BUNA | HI CAP | 40 | MECH | SOFT OUTLET | FACE DOWN | CANADA | |
| M7G1-MECH-NP#7 | L-R | 1/10 GAL | BUNA | STD | 40 | MECH | N/A | FACE UP | NIST | |
| M7G1-MECH-NP#10 | R-L | 1/10 GAL | BUNA | STD | 40 | MECH | N/A | FACE DOWN | NIST | |
| M7G1-MECH-NP#12 | L-R | 1/10 GAL | BUNA | STD | 40 | MECH | N/A | FACE DOWN | NIST | |
| M7G1-MECH-NP#13 | L-R | 1/10 GAL | VITON® | HI CAP | 40 | MECH | METAL INLET | FACE DOWN | NIST | |
| M7GX1-MECH-NP#1 | L-R | LITRES | BUNA | STD | 40 | MECH | N/A | FACE DOWN | OIML | |
| M7GX1-MECH-NP#2 | L-R | LITRES | BUNA | STD | 40 | MECH | N/A | FACE DOWN | NIST | |
M7K1
METER WITH REGISTRATION + PRESET VALVE + STRAINER + AIR ELIMINATOR
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | VALVE TYPE | VALVE OUTLET | STRAINER TYPE | MESH | AIR ELIM. | CHECK VALVE | TEMP COMP | SOFT WARE | W&M APPROVAL | |
| LCR.iQ® REGISTRATION | |||||||||||||
| M7K1-LCR.IQ-E#1 | L-R | WH GAL | BUNA | BLOCK | INLINE | STD | 20 | MECH | METAL INLET | N/A | N/A | NIST | |
| M7K1-LCR.IQ-E#2 | L-R | 1/10 GAL | BUNA | E7 | UP | STD | 20 | MECH | METAL INLET | N/A | N/A | NIST | |
| M7K1-LCR.IQ-E#3 | R-L | 1/10 GAL | BUNA | E7 | UP | STD | 20 | MECH | METAL INLET | N/A | N/A | NIST | |
| M7K1-LCR.IQ-E#4 | L-R | 1/10 GAL | BUNA | BLOCK | INLINE | HI CAP | 40 | OPTICAL | SOFT OUTLET | N/A | N/A | NIST | |
| M7K1-LCR.IQ-I#1 | L-R | 1/10 GAL | BUNA | EP7 | UP | HI CAP | 40 | OPTICAL | SOFT OUTLET | N/A | N/A | NIST | |
| M7K1-LCR.IQ-I#2 | R-L | 1/10 GAL | BUNA | EP7 | UP | HI CAP | 40 | OPTICAL | SOFT OUTLET | N/A | N/A | NIST | |
| M7K1-LCR.IQ-I#3 | R-L | 1/10 GAL | BUNA | E7 | FRONT | HI CAP | 40 | OPTICAL | SOFT INLET | N/A | N/A | NIST | |
| M7K1-LCR.IQ-I#4 | L-R | 1/10 GAL | BUNA | BLOCK | INLINE | HI CAP | 40 | OPTICAL | SOFT OUTLET | N/A | N/A | NIST | |
| M7K1-LCR.IQ-I#5 | R-L | 1/10 GAL | BUNA | BLOCK | INLINE | HI CAP | 40 | OPTICAL | SOFT OUTLET | N/A | N/A | NIST | |
| M7K1-LCR.IQ-I#6 | L-R | 1/10 GAL | BUNA | BLOCK | UP | HI CAP | 40 | OPTICAL | SOFT OUTLET | N/A | N/A | NIST | |
| M7K1-LCR.IQ-I#7 | R-L | 1/10 GAL | BUNA | BLOCK | UP | HI CAP | 40 | OPTICAL | SOFT OUTLET | N/A | N/A | NIST | |
| M7K1-LCR.IQ-I#8 | L-R | 1/10 GAL | VITON® | E7 | FRONT | HI CAP | 40 | OPTICAL | METAL INLET | N/A | N/A | NIST | |
| M7K1-LCR.IQ-I#9 | L-R | LITRES | BUNA | BLOCK | INLINE | HI CAP | 40 | OPTICAL | SOFT OUTLET | N/A | N/A | OIML | |
| M7K1-LCR.IQ-I#10 | L-R | 1/10 GAL | BUNA | E7 | FRONT | HI CAP | 40 | OPTICAL | SOFT INLET | N/A | N/A | NIST | |
| M7K1-LCR.IQ-I#11 | R-L | 1/10 GAL | BUNA | BLOCK | INLINE | HI CAP | 80 | OPTICAL | SOFT OUTLET | N/A | N/A | NIST | |
| M7K1-LCR.IQ-I#12 | L-R | LITRES | BUNA | BLOCK | INLINE | STD | 40 | MECH | NA | N/A | N/A | OIML | |
| M7K1-LCR.IQ-I#13 | L-R | 1/10 GAL | BUNA | BLOCK | INLINE | HI CAP | 40 | OPTICAL | METAL INLET | N/A | N/A | NIST | |
| M7K1-LCR.IQ-I#15 | L-R | 1/10 GAL | VITON® | BLOCK | INLINE | STD | 40 | MECH | NA | N/A | N/A | NIST | |
| M7KT1-LCR.IQ-I#5 | R-L | LITRES | BUNA | BLOCK | INLINE | HI CAP | 40 | OPTICAL | SOFT OUTLET | YES | N/A | CANADA | |
| M7KT1-LCR.IQ-I#7 | R-L | LITRES | BUNA | BLOCK | INLINE | HI CAP | 40 | OPTICAL | NA | YES | N/A | CANADA | |
| M7KT1-LCR.IQ-I#8 | L-R | WH GAL | BUNA | BLOCK | INLINE | HI CAP | 40 | OPTICAL | SOFT INLET | YES | N/A | NIST | |
M7K1 CONTINUED
METER WITH REGISTRATION + PRESET VALVE + STRAINER + AIR ELIMINATOR
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | VALVE TYPE | VALVE OUTLET | STRAINER TYPE | MESH | AIR ELIMINATOR | CHECK VALVE | TEMP COMP | SOFT WARE | W&M APPROVAL | |
| LCR®-II REGISTRATION | |||||||||||||
| M7K1-LCR2-E#1 | L-R | 1/10 GAL | BUNA | BLOCK | INLINE | HI CAP | 40 | MECH | METAL INLET | N/A | SL200 ST258 | NIST | |
| M7K1-LCR2-E#3 | R-L | 1/10 GAL | VITON® | V7/ELECT- PNUEM | UP | STD | 20 | MECH | METAL INLET | N/A | SL200 ST258 | NIST | |
| M7K1-LCR2-E#5 | L-R | 1/10 GAL | BUNA | EP7 | UP | HI CAP | 20 | MECH | SOFT OUTLET | N/A | SL200 ST258 | NIST | |
| M7K1-LCR2-E#6 | R-L | 1/10 GAL | BUNA | BLOCK | INLINE | HI CAP | 40 | OPTICAL | N/A | N/A | SL200 ST203 | NIST | |
| M7K1-LCR2-E#7 | R-L | 1/10 GAL | BUNA | E7 | UP | HI CAP | 40 | OPTICAL | N/A | N/A | SL200 ST203 | NIST | |
| M7K1-LCR2-E#11 | R-L | 1/10 GAL | VITON® | V7/ELECT- PNUEM | UP | HI CAP | 20 | MECH | METAL INLET | N/A | SL200 ST215 | NIST | |
| M7K1-LCR2-E#12 | L-R | 1/10 GAL | VITON® | V7/Elect- Pnuem | UP | HI CAP | 20 | MECH | METAL INLET | N/A | SL200 ST215 | NIST | |
| M7K1-LCR2-I#3 | L-R | 1/10 GAL | BUNA | E7 | UP | HI CAP | 40 | OPTICAL | N/A | N/A | SL200 ST215 | NIST | |
| M7K1-LCR2-I#4 | L-R | 1/10 GAL | BUNA | E7 | UP | HI CAP | 40 | OPTICAL | N/A | N/A | SL200 ST202 | NIST | |
| M7K1-LCR2-I#5 | L-R | LITRES | BUNA | BLOCK | INLINE | STD | 40 | MECH | N/A | N/A | SL201 ST204 | NIST | |
| M7K1-LCR2-I#7 | R-L | 1/10 GAL | BUNA | BLOCK | INLINE | HI CAP | 40 | OPTICAL | SOFT OUTLET | N/A | SL200 ST258 | NIST | |
| M7K1-LCR2-I#8 | L-R | 1/10 GAL | VITON® | E7 | UP | HI CAP | 40 | OPTICAL | N/A | N/A | SL200 ST203 | NIST | |
| M7K1-LCR2-I#9 | L-R | 1/10 GAL | VITON® | E7 | UP | STD | 20 | MECH | METAL INLET | N/A | SL200 ST215 | NIST | |
| M7K1-LCR2-I#13 | L-R | 1/10 GAL | BUNA | E7 | UP | HI CAP | 40 | OPTICAL | METAL INLET | N/A | SL200 ST200 | NIST | |
| M7K1-LCR2-I#14 | L-R | 1/10 GAL | BUNA | E7 | UP | HI CAP | 40 | OPTICAL | N/A | N/A | SL200 ST200 | NIST | |
| M7K1-LCR2-I#15 | L-R | 1/10 GAL | VITON® | BLOCK | INLINE | STD | 20 | MECH | METAL INLET | N/A | SL200 ST258 | NIST | |
| M7K1-LCR2-I#16 | L-R | 1/10 GAL | VITON® | BLOCK | INLINE | HI CAP | 40 | OPTICAL | METAL INLET | N/A | SL200 ST200 | NIST | |
| M7K1-LCR2-I#17 | L-R | 1/10 GAL | BUNA | E7 | FRONT | HI CAP | 40 | OPTICAL | SOFT INLET | N/A | SL200 ST258 | NIST | |
| M7K1-LCR2-I#18 | L-R | 1/10 GAL | VITON® | E7 | UP | HI CAP | 40 | OPTICAL | N/A | N/A | SL200 ST202 | NIST | |
| M7K1-LCR2-I#19 | L-R | 1/10 GAL | VITON® | E7 | UP | HI CAP | 40 | OPTICAL | METAL INLET | N/A | SL200 ST215 | NIST | |
| M7K1-LCR2-I#20 | R-L | 1/10 GAL | VITON® | E7 | UP | STD | 20 | MECH | METAL INLET | N/A | SL200 ST215 | NIST | |
| M7K1-LCR2-I#21 | L-R | LITRES | BUNA | BLOCK | INLINE | STD | 40 | MECH | N/A | N/A | SL201 ST204 | OIML | |
| M7K1-LCR2-I#22 | L-R | 1/10 GAL | VITON® | EP7 | UP | STD | 20 | MECH | METAL INLET | N/A | SL200 ST215 | NIST | |
| M7K1-LCR2-I#23 | R-L | 1/10 GAL | VITON® | EP7 | UP | STD | 20 | MECH | METAL INLET | N/A | SL200 ST215 | NIST | |
| M7K1-LCR2-I#25 | R-L | 1/10 GAL | BUNA | BLOCK | INLINE | HI CAP | 40 | OPTICAL | N/A | N/A | SL200 ST215 | NIST | |
M7K1 CONTINUED
METER WITH REGISTRATION + PRESET VALVE + STRAINER + AIR ELIMINATOR
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | VALVE TYPE | VALVE OUTLET | STRAINER TYPE | MESH | AIR ELIMINATOR | CHECK VALVE | TEMP COMP | SOFT WARE | W&M APPROVAL | |
| LCR®-II REGISTRATION | |||||||||||||
| M7KT1-LCR2-E#1 | R-L | 1/10 GAL | BUNA | E7 | UP | HI CAP | 40 | OPTICAL | N/A | YES | SL600 ST203 | NIST | |
| M7KT1-LCR2-I#1 | L-R | 1/10 GAL | BUNA | BLOCK | INLINE | HI CAP | 40 | MECH | METAL INLET | YES | SL200 ST215 | NIST | |
| M7KT1-LCR2-I#2 | L-R | 1/10 GAL | BUNA | BLOCK | INLINE | HI CAP | 40 | OPTICAL | SOFT INLET | YES | SL200 ST258 | NIST | |
| M7KT1-LCR2-I#3 | L-R | 1/10 GAL | BUNA | BLOCK | INLINE | HI CAP | 40 | OPTICAL | METAL INLET | YES | SL200 ST258 | NIST | |
| M7KT1-LCR2-I#6 | R-L | LITRES | BUNA | BLOCK | INLINE | HI CAP | 40 | OPTICAL | SOFT OUTLET | YES | SL202 ST201 | CANADA | |
| M7KT1-LCR2-I#8 | L-R | 1/10 GAL | BUNA | E7 | UP | HI CAP | 40 | OPTICAL | SOFT INLET | YES | SL200 ST258 | NIST | |
| M7KT1-LCR2-I#9 | L-R | 1/10 GAL | BUNA | E7 | UP | HI CAP | 40 | OPTICAL | METAL INLET | YES | SL200 ST258 | NIST | |
| M7KT1-LCR2-I#45 | L-R | LITRES | BUNA | V7/ELECT- PNUEM | UP | HI CAP | 20 | MECH | METAL INLET | YES | SL200 ST200 | CANADA | |
| M7KX1-LCR2-I#1 | R-L | Gallons | BUNA | E7 | UP | HI CAP | 40 | MECH | SOFT INLET | N/A | SL200 ST203 | NIST | |
| M7KY1-LCR2-I#2 | R-L | 1/10 GAL | BUNA | E7 | UP | HI CAP | 40 | MECH | N/A | YES | SL200 ST203 | NIST | |
| LCR®600 REGISTRATION | |||||||||||||
| M7K1-LCR600-E#2 | L-R | 1/10 GAL | BUNA | E7 | UP | STD | 20 | MECH | METAL INLET | N/A | SL600 ST600 | NIST | |
| M7K1-LCR600-E#3 | R-L | 1/10 GAL | BUNA | E7 | UP | STD | 20 | MECH | METAL INLET | N/A | SL600 ST600 | NIST | |
| M7K1-LCR600-I#2 | R-L | 1/10 GAL | BUNA | EP7 | UP | HI CAP | 40 | OPTICAL | SOFT OUTLET | N/A | SL600 ST662 | NIST | |
| M7K1-LCR600-I#3 | L-R | 1/10 GAL | BUNA | BLOCK | UP | HI CAP | 40 | OPTICAL | SOFT OUTLET | N/A | SL600 ST600 | NIST | |
| M7K1-LCR600-I#4 | R-L | 1/10 GAL | BUNA | E7 | FRONT | HI CAP | 40 | OPTICAL | SOFT INLET | N/A | SL600 ST600 | NIST | |
| M7K1-LCR600-I#9 | L-R | 1/10 GAL | BUNA | E7 | UP | HI CAP | 40 | OPTICAL | SOFT OUTLET | N/A | SL600 ST600 | NIST | |
M7K1 CONTINUED
METER WITH REGISTRATION + PRESET VALVE + STRAINER + AIR ELIMINATOR
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | VALVE TYPE | VALVE OUTLET | STRAINER TYPE | MESH | AIR ELIMINATOR | CHECK VALVE | TEMP COMP | SOFT WARE | W&M APPROVAL | |
| LCR®600 REGISTRATION | |||||||||||||
| M7K1-LCR600-I#15 | L-R | 1/10 GAL | BUNA | E7 | UP | HI CAP | 40 | OPTICAL | METAL INLET | N/A | SL600 ST662 | NIST | |
| M7K1-LCR600-I#16 | R-L | 1/10 GAL | BUNA | E7 | UP | HI CAP | 40 | OPTICAL | METAL INLET | N/A | SL600 ST662 | NIST | |
| M7K1-LCR600-I#19 | R-L | 1/10 GAL | BUNA | BLOCK | INLINE | HI CAP | 40 | OPTICAL | SOFT OUTLET | N/A | SL600 ST662 | NIST | |
| M7K1-LCR600-I#20 | L-R | 1/10 GAL | VITON® | E7 | UP | HI CAP | 40 | OPTICAL | METAL INLET | N/A | SL600 ST602 | NIST | |
| M7K1-LCR600-I#21 | R-L | 1/10 GAL | BUNA | BLOCK | INLINE | STD | 20 | OPTICAL | SOFT OUTLET | N/A | SL600 ST602 | NIST | |
| M7K1-LCR600-I#22 | L-R | LITRES | VITON® | E7 | UP | STD | 40 | MECH | METAL INLET | N/A | SL600 ST600 | NIST | |
| M7K1-LCR600-I#26 | R-L | 1/10 GAL | BUNA | E7 | UP | STD | 40 | OPTICAL | SOFT INLET | N/A | SL600 ST600 | NIST | |
| MECHANICAL REGISTRATION | |||||||||||||
| M7K1-MECH-NP#1 | L-R | 1/10 GAL | BUNA | 4 DIGIT | MECH | UP | STD | 40 | MECH | N/A | N/A | NIST | |
| M7K1-MECH-NP#2 | L-R | LITRES | BUNA | 5 DIGIT | MECH | DOWN | STD | 40 | MECH | N/A | N/A | OIML | |
| M7K1-MECH-WP#1* | L-R | 1/10 GAL | BUNA | 4 DIGIT | MECH | FRONT | STD | 40 | MECH | N/A | N/A | NIST | |
M7N1 METER WITH REGISTER + PRESET VALVE + STRAINER + AIR ELIMINATOR + PRINTER
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | PRESET TYPE | VALVE TYPE | VALVE | STRAINER TYPE | MESH | AIR ELIM. | CHECK VALVE | PRINTER TYPE | W&M APPROVAL | |
| MECHANICAL REGISTRATION | |||||||||||||
| M7N1-MECH-NP#1 | L-R | 1/10 GAL | BUNA | 5 DIGIT | MECH | UP | STD | 40 | MECH | SOFT INLET | FACE DOWN | NIST | |
| M7N1-MECH-NP#2 | L-R | 1/10 GAL | BUNA | 4 DIGIT | MECH | UP | HI CAP | 40 | MECH | N/A | FACE DOWN | NIST | |
| M7N1-MECH-NP#3 | L-R | 1/10 GAL | VITON® | 4 DIGIT | MECH | UP | HI CAP | 40 | MECH | METAL INLET | FACE DOWN | NIST | |
| M7N1-MECH-NP#5 | L-R | 1/10 GAL | VITON® | 4 DIGIT | MECH | UP | STD | 40 | MECH | METAL INLET | FACE DOWN | NIST | |
| M7N1-MECH-NP#6 | L-R | 1/10 GAL | BUNA | 5 DIGIT | MECH | UP | HI CAP | 20 | MECH | SOFT INLET | FACE DOWN | NIST | |
| M7N1-MECH-NP#7 | R-L | 1/10 GAL | BUNA | 5 DIGIT | MECH | UP | HI CAP | 20 | MECH | SOFT INLET | FACE DOWN | NIST | |
| M7N1-MECH-NP#8 | L-R | 1/10 GAL | BUNA | 5 DIGIT | MECH | UP | STD | 40 | MECH | SOFT INLET | FACE DOWN | NIST | |
| M7N1-MECH-NP#13 | L-R | LITRES | BUNA | 5 DIGIT | MECH | UP | STD | 40 | MECH | N/A | FACE UP | OIML | |
| M7N1-MECH-WP#2* | L-R | WH GAL | BUNA | 4 DIGIT | MECH | FRONT | HI CAP | 40 | MECH | N/A | FACE DOWN | NIST | |
| M7NX1-MECH-NP#1 | L-R | 1/10 GAL | BUNA | 4 DIGIT | MECH | UP | HI CAP | 40 | MECH | N/A | FACE DOWN | NIST | |
| M7NX1-MECH-NP#3 | L-R | 1/10 GAL | BUNA | 4 DIGIT | MECH | UP | HI CAP | 40 | MECH | N/A | FACE UP | NIST | |
| M7NX1-MECH-NP#6 | L-R | 1/10 GAL | BUNA | 4 DIGIT | MECH | UP | STD | 40 | MECH | N/A | FACE DOWN | NIST | |
M7P1 METER LESS REGISTER AND GEAR PLATE
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | W&M APPROVAL | |
| LESS REGISTER AND GEAR PLATE | |||||
| M7P1-LRG#1 | L-R | 1/10 GAL | BUNA | NIST | |
| M7P1-LRG#2 | L-R | LITRES | BUNA | OIML | |
| M7P1-LRG#3 | L-R | 1/10 GAL | VITON® | NIST | |
| M7P1-LRG#4 | R-L | 1/10 GAL | VITON® | NIST | |
| M7P1-LRG#5 | L-R | LITRES | BUNA | CAN | |
M7S1
METER WITH POD (PULSE OUTPUT DEVICE)
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | W&M APPROVAL | |
| LESS REGISTER AND GEAR PLATE | |||||
| M7S1-POD#1 | L-R | WH GAL | BUNA | NIST | |
Class 2 Meters
M7A2 METER WITH REGISTER
| CATALOG NUMBER | FLOW | PRESSURE | UNIT OF MEASURE | W&M APPROVAL | |
| LCR.iQ® REGISTRATION | |||||
| M7A2-LCR.IQ-I#1 | L-R | 285 | WH GAL | NIST | |
| M7A2-LCR.IQ-E#1 | L-R | 285 | WH GAL | NIST | |
| MECHANICAL REGISTRATION | |||||
| M7A2-MECH-NP#1 | L-R | 285 | WH GAL | NIST | |
| M7A2-MECH-NP#2 | L-R | 285 | 1/10 GAL | NIST | |
| M7A2-MECH-NP#5 | R-L | 285 | 1/10 GAL | NIST | |
| SETUP FOR ELECTRONIC REGISTRATION | |||||
| M7A2-SUFE#1 | L-R | 285 | LITRES | OIML | |
| M7A2-SUFE#3 | L-R | 285 | WH GAL | NIST | |
| M7A2-SUFE#4 | L-R | 285 | LITRES | CAN | |
M7C2 METER WITH REGISTER + STRAINER + AIR ELIMINATOR
| CATALOG NUMBER | FLOW | PRESSURE | UNIT OF MEASURE | STRAINER TYPE | MESH | AIR ELIM. | SOFTWARE | W&M APPROVAL | |
| LCR.iQ® REGISTRATION | |||||||||
| M7C2-LCR.IQ-I#1 | L-R | 150 | WH GAL | STD | 40 MESH | MECH | N/A | NIST | |
| LCR®-II REGISTRATION | |||||||||
| M7C2-LCR2-I#1 | L-R | 150 | WH GAL | STD | 40 MESH | MECH | SL200 ST200 | NIST | |
| M7C2-LCR2-I#2 | R-L | 150 | WH GAL | STD | 40 MESH | MECH | SL200 ST200 | NIST | |
| MECHANICAL REGISTRATION | |||||||||
| M7C2-MECH-NP#1 | L-R | 150 | WH GAL | STD | 40 MESH | MECH | N/A | NIST | |
| M7C2-MECH-NP#4 | R-L | 150 | 1/10 GAL | STD | 40 MESH | MECH | N/A | NIST | |
| M7C2-MECH-NP#5 | L-R | 150 | 1/10 GAL | STD | 40 MESH | MECH | N/A | NIST | |
| M7C2-MECH-WP#1* | R-L | 150 | WH GAL | STD | 40 MESH | MECH | N/A | NIST | |
M7P2 METER LESS REGISTER AND GEAR PLATE
| CATALOG NUMBER | FLOW | PRESSURE | UNIT OF MEASURE | W&M APPROVAL | |
| LESS REGISTER & GEAR PLATE | |||||
| M7P2-LRG#1 | L-R | 285 | WH GAL | NIST | |
| M7P2-LRG#2 | L-R | 285 | LITRES | CAN | |
M7S2 METER WITH POD (PULSE OUTPUT DEVICE)
| CATALOG NUMBER | FLOW | PRESSURE | UNIT OF MEASURE | W&M APPROVAL | |
| POD (PULSE OUTPUT DEVICE) | |||||
| M7S2-POD#1 | L-R | 285 | WH GAL | NIST | |
| M7S2-POD#1 | L-R | 285 | LITRES | AUST | |
Class 3 Meters
M7I3
METER WITH REGISTER + PRESET + PRESET VALVE
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | PRESET | VALVE | |
| MECHANICAL REGISTRATION | ||||||
| M7I3-MECH-NP#1 | L-R | 1/10 GAL | BUNA | 4-DIGIT | OUTLET UP | |
| M7I3-MECH-NP#2 | L-R | POUNDS | BUNA | 4-DIGIT | OUTLET UP | |
M7P3
METER LESS REGISTER AND GEAR PLATE
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | |
| LESS REGISTER & GEAR PLATE | ||||
| M7P3-LRG#1 | L-R | 1/10 GAL | BUNA | |
| M7P3-LRG#2 | L-R | LITRES | BUNA | |
M7S3
METER WITH POD (PULSE OUTPUT DEVICE)
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | |
| POD (PULSE OUTPUT DEVICE) | ||||
| M7S3-POD#1 | L-R | 1/10 GAL | BUNA | |
Class 4 Meters
M7A4
METER SETUP FOR REGISTRATION
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | |
| SETUP FOR ELECTRONIC REGISTRATION | ||||
| M7A4-SUFE#1 | L-R | 1/10 GAL | BUNA | |
M7I4
METER WITH REGISTER + PRESET + PRESET VALVE
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | PRESET | VALVE | |
| MECHANICAL REGISTRATION | ||||||
| M7I4-MECH-NP#1 | L-R | 1/10 GAL | BUNA | 4-DIGIT | MECH. OUTLET UP | |
| M7I4-MECH-NP#2 | R-L | 1/10 GAL | BUNA | 4-DIGIT | MECH. OUTLET UP | |
M7K4
METER WITH REGISTER + STRAINER + AIR ELIMINATOR + PRESET VALVE
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | PRESET | VALVE | STRAINER TYPE | MESH | AIR ELIM. | SOFTWARE | |
| LCR.iQ® REGISTRATION | ||||||||||
| M7K4-LCR.IQ-I#1 | L-R | 1/10 GAL | BUNA | N/A | OUTLET IN-LINE | HI-CAP | 40 | OPTICAL | N/A | |
| LCR®-II REGISTRATION | ||||||||||
| M7K4-LCR2-I#1 | L-R | 1/10 GAL | BUNA | N/A | OUTLET IN-LINE | HI-CAP | 40 | OPTICAL | SL200 ST202 | |
| M7K4-LCR2-I#2 | L-R | 1/10 GAL | BUNA | N/A | V7/ELECT. PNUEM. OUTLET UP | STANDARD | 20 | MECH | SL200 ST215 | |
| M7K4-LCR2-I#3 | R-L | 1/10 GAL | BUNA | N/A | V7/ELECT. PNUEM. OUTLET UP | STANDARD | 20 | MECH | SL200 ST215 | |
| LCR600 REGISTRATION | ||||||||||
| M7K4-LCR600-E#1 | L-R | 1/10 GAL | BUNA | N/A | BLOCK IN-LINE | STANDARD | 40 | MECH | SL600 ST600 | |
M7N4
METER WITH REGISTER + PRESET + PRESET VALVE + STRAINER + AIR ELIMINATOR + PRINTER
| CATALOG NUMBER | FLOW | UNIT OF | SEAL | PRESET | VALVE | STRAINER TYPE | MESH | AIR ELIM. | PRINTER STYLE | |
| MECHANICAL REGISTRATION | ||||||||||
| M7N4-MECH-NP#1 | L-R | 1/10 GAL | BUNA | 4-DIGIT | OUTLET UP | STANDARD | 40 | MECH | FACE DOWN | |
| M7N4-MECH-NP#2 | L-R | LITRES | BUNA | 4-DIGIT | OUTLET UP | STANDARD | 40 | MECH | FACE DOWN | |
M7P4
METER LESS REGISTER AND GEAR PLATE
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | |
| LESS REGISTER & GEAR PLATE | ||||
| M7P4-LRG#1 | L-R | 1/10 GAL | BUNA | |
| M7P4-LRG#2 | R-L | 1/10 GAL | BUNA | |
M7S4
METER WITH POD (PULSE OUTPUT DEVICE)
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | |
| POD (PULSE OUTPUT DEVICE) | ||||
| M7S4-POD#1 | L-R | 1/10 GAL | BUNA | |
Class 8 Meters
M7A8
METER WITH REGISTRATION
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | SOFTWARE | |
| LCR.iQ® REGISTRATION | |||||
| M7A8-LCR.IQ-I#1 | L-R | 1/10 GAL | PTFE | N/A | |
| LCR®-II REGISTRATION | |||||
| M7A8-LCR2-I#1 | L-R | POUNDS | PTFE | SL200 ST200 | |
| MECHANICAL REGISTRATION | |||||
| M7A8-MECH-NP#1 | L-R | 1/10 GAL | PTFE | N/A | |
| M7A8-MECH-NP#2 | L-R | LITRES | PTFE | N/A | |
| SETUP FOR ELECTRONIC REGISTRATION | |||||
| M7A8-SUFE#1 | L-R | 1/10 GAL | PTFE | N/A | |
M7I8 METER WITH REGISTER + PRESET + PRESET VALVE
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | PRESET | VALVE | |
| MECHANICAL REGISTRATION | ||||||
| M7I8-MECH-NP#1 | L-R | 1/10 GAL | PTFE | 4-DIGIT | OUTLET UP | |
| M7I8-MECH-NP#2 | L-R | LITRES | PTFE | 4-DIGIT | OUTLET UP | |
| M7I8-MECH-NP#3 | R-L | LITRES | PTFE | 4-DIGIT | OUTLET UP | |
| M7I8-MECH-NP#4 | L-R | 1/10 GAL | PTFE | 4-DIGIT | OUTLET UP | |
M7K8 METER WITH REGISTER + PRESET + PRESET VALVE + STRAINER + AIR ELIMINATOR
| CATALOG NUMBER | FLOW | UNIT OF | SEAL | PRESET | VALVE | STRAINER TYPE | MESH | AIR ELIM. | ||
| MECHANICAL REGISTRATION | ||||||||||
| M7K8-MECH-NP#1 | L-R | 1/10 GAL | PTFE | 5-DIGIT | OUTLET UP | 40 | MECH | N/A | ||
M7P8 METER LESS REGISTER AND GEAR PLATE
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | |
| LESS REGISTER & GEAR PLATE | ||||
| M7P8-LRG#1 | L-R | 1/10 GAL | PTFE | |
M7S8 METER WITH POD (PULSE OUTPUT DEVICE)
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | |
| POD (PULSE OUTPUT DEVICE) | ||||
| M7S8-POD#1 | L-R | 1/10 GAL | PTFE | |
Class 14 Meters
M7A14
METER WITH REGISTERATION
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | |
| MECHANICAL REGISTRATION | ||||
| M7A14-MECH-NP#1 | L-R | 1/10 GAL | PTFE | |
| M7A14-MECH-NP#2* | L-R | 1/10 GAL | VITON | |
M7C14
METER WITH REGISTER + STRAINER + AIR ELIMINATOR
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | STRAINER TYPE | MESH | AIR ELIM. | |
| MECHANICAL REGISTRATION | |||||||
| M7C14-MECH-NP#1 | L-R | 1/10 GAL | VITON | STANDARD | 20 | MECH | |
| M7C14-MECH-NP#2 | L-R | LITRES | VITON | STANDARD | 20 | MECH | |
M7I14
METER WITH REGISTER + PRESET + PRESET VALVE
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | PRESET | VALVE |
| MECHANICAL REGISTRATION | |||||
| M7I14-MECH-NP#1 | L-R | 1/10 GAL | VITON | 4-DIGIT | OUTLET UP |
M7P14
METER LESS REGISTER AND GEAR PLATE
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | |
| LESS REGISTER & GEAR PLATE | ||||
| M7P14-LRG#1 | L-R | 1/10 GAL | VITON | |
M7S14
METER WITH POD (PULSE OUTPUT DEVICE)
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEAL | |
| POD (PULSE OUTPUT DEVICE) | ||||
| M7S14-POD#1 | L-R | 1/10 GAL | VITON | |
Class 16 Meters
| M7A16 METER WITH REGISTRATION | |||||
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | W&M APPROVAL | |
| MECHANICAL REGISTRATION | |||||
| M7A16-MECH-NP#1 | L-R | 1/10 GAL | PTFE | NIST | |
| M7A16-MECH-WP#1* | L-R | LITRES | PTFE | OIML | |
| SET UP FOR ELECTRONICS | |||||
| M7A16-SUFE#1 | L-R | LITRES | PTFE | CAN | |
M7C16
METER WITH REGISTER + STRAINER + AIR ELIMINATOR
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | STRAINER TYPE | MESH | AIR ELIMINATOR | SOFTWARE | W&M | |
| LCR®-II REGISTRATION | |||||||||
| M7C16-LCR2-I#1 | L-R | LITRES | BUNA | STD | 40 | MECH | SL200 ST201 | CAN | |
| M7C16-LCR2-I#5 | L-R | 1/10 GAL | VITON® | HI CAP | 40 | MECH | SL200 ST202 | NIST | |
| M7C16-LCR2-I#7 | L-R | 1/10 GAL | PTFE | STD | 40 | MECH | SL200 ST215 | NIST | |
| M7C16-LCR2-I#8 | R-L | 1/10 GAL | VITON® | STD | 40 | MECH | SL200 ST202 | NIST | |
| POD (PULSE OUTPUT DEVICE) | |||||||||
| M7C16-POD#1 | L-R | LITRES | VITON® | STD | 40 | MECH | N/A | CAN | |
M7I16
METER WITH REGISTER + PRESET VALVE + PRESET
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | PRESET | W&M APPROVAL | |
| MECHANICAL REGISTRATION | ||||||
| M7I16-MECH-NP#1 | L-R | LITRES | PTFE | 4-DIGIT | NIST | |
| M7I16-MECH-NP#2 | L-R | 1/10 GAL | PTFE | 4-DIGIT | NIST | |
M7K16
METER WITH REGISTER + PRESET + PRESET VALVE + STRAINER + AIR ELIMINATOR
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | PRESET | VALVE TYPE | VALVE OUTLET | STRAINER TYPE | MESH | AIR ELIM | W&M APPROVAL | |
| MECHANICAL REGISTRATION | |||||||||||
| M7K16-MECH-NP#1 | L-R | 1/10 GAL | PTFE | 4-DIGIT | MECH | DOWN | STD | 100 | MECH | NIST | |
| M7K16-MECH-NP#3 | L-R | LITRES | PTFE | 5-DIGIT | MECH | UP | STD | 40 | MECH | OIML | |
| M7K16-MECH-NP#5 | L-R | 1/10 GAL | PTFE | 4-DIGIT | MECH | UP | STD | 40 | MECH | OIML | |
M7P16
METER LESS REGISTER AND GEAR PLATE
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | W&M APPROVAL | |
| LESS REGISTER & GEAR PLATE | |||||
| M7P16-LRG#1 | L-R | 1/10 GAL | BUNA | NIST | |
| M7P16-LRG#2 | L-R | LITRES | PTFE | CAN | |
| M7P16-LRG#3 | L-R | LITRES | PTFE | OIML | |
M7S16
METER WITH POD (PULSE OUTPUT DEVICE)
| CATALOG NUMBER | FLOW | UNIT OF MEASURE | SEALS | W&M APPROVAL | |
| POD (PULSE OUTPUT DEVICE) | |||||
| M7S16-POD#1 | L-R | LITRES | PTFE | CAN | |
| M7S16-POD#2 | L-R | WH GAL | PTFE | NIST | |
Class 18 Meters
| PART NUMBERS FOR ACCESSORY PACKAGE A | |
| LCR.iQ® REGISTRATION | |
| PART NUMBER: M7A18-LCR.iQ-I#1 • VOLTAGE REQUIREMENTS: 9 TO 28VDC • FLOW DIRECTION LEFT TO RIGHT | |
| LCR®-II REGISTRATION | |
| PART NUMBER: M7A18-LCR2-I#1 • VOLTAGE REQUIREMENTS: 9 TO 28VDC • LCR–IISUPPLIEDWITHSOFTWARE:SR260,SL200,ST202 • FLOW DIRECTION LEFT TO RIGHT | |
| MECHANICAL REGISTRATION | |
| PART NUMBER: M7A18-MECH-NP#1 • MECHANICAL REGISTER: 1/10 GALLON • FLOW DIRECTION LEFT TO RIGHT | |
| SETUPFORELECTRONICS | |
| PART NUMBER: M7A18-SUFE#1 • SUPPLIED WITH 81369 REGISTER MOUNTING KIT • FLOW DIRECTION LEFT TO RIGHT | |
| PART NUMBERS FOR ACCESSORY PACKAGE C | |
| LCR.iQ® REGISTRATION | |
| PART NUMBER: M7C18-LCR.iQ-I#1 • VOLTAGE REQUIREMENTS: 9 TO 28VDC • FLOW DIRECTION LEFT TO RIGHT | |
| LCR®-II REGISTRATION | |
| PART NUMBER: M7C18-LCR2-I#1 • VOLTAGE REQUIREMENTS: 9 TO 28VDC • LCR–IISUPPLIEDWITHSOFTWARE:SR260,SL200,ST202 • FLOW DIRECTION LEFT TO RIGHT | |
| MECHANICAL REGISTRATION | |
| PART NUMBER: M7C18-MECH-NP#1 • MECHANICAL REGISTER: 1/10 GALLON • FLOW DIRECTION LEFT TO RIGHT | |
| SETUPFORELECTRONICS | |
| PART NUMBER: M7C18-SUFE#1 • SUPPLIED WITH 81369 REGISTER MOUNTING KIT • FLOW DIRECTION LEFT TO RIGHT | |
| PART NUMBERS FOR ACCESSORY PACKAGE E | |
| MECHANICAL REGISTRATION | |
PART NUMBER: M7E18-MECH-NP#1
| |
| PART NUMBERS FOR ACCESSORY PACKAGE J | |
| LCR.iQ® REGISTRATION | |
| PART NUMBER: M7J18-LCR.iQ-I#1 • VOLTAGE REQUIREMENTS: 9 TO 28VDC • FLOW DIRECTION LEFT TO RIGHT | |
| LCR®-II REGISTRATION | |
| PART NUMBER: M7J18-LCR2-I#1 • VOLTAGE REQUIREMENTS: 9 TO 28VDC • LCR–IISUPPLIEDWITHSOFTWARE:SR260,SL200,ST202 • FLOW DIRECTION LEFT TO RIGHT | |
| PART NUMBERS FOR ACCESSORY PACKAGE K | |
| LCR.iQ® REGISTRATION | |
| PART NUMBER: M7K18-LCR.iQ-I#1 • VOLTAGE REQUIREMENTS: 9 TO 28VDC • FLOW DIRECTION LEFT TO RIGHT | |
| LCR®-II REGISTRATION | |
| PART NUMBER: M7K18-LCR2-I#1 • VOLTAGE REQUIREMENTS: 9 TO 28VDC • LCR–IISUPPLIEDWITHSOFTWARE:SR260,SL200,ST202 • FLOW DIRECTION LEFT TO RIGHT | |
| MECHANICAL REGISTRATION | |
| PART NUMBER: M7K18-MECH-NP#1 • MECHANICAL REGISTER: 1/10 GALLON • FLOW DIRECTION LEFT TO RIGHT | |
| PART NUMBERS FOR ACCESSORY PACKAGE P | |
| LESSREGISTER&GEARPLATE | |
| PART NUMBER: M7P18-LRG#1 • SUPPLIEDWITHMECHANICALADJUSTER • FLOW DIRECTION LEFT TO RIGHT | |
| PART NUMBERS FOR ACCESSORY PACKAGE S | |
| POD,PULSEOUTPUTDEVICE | |
| PART NUMBER: M7S18-POD#1 • SUPPLIED WITH POD PULSER • VOLTAGE REQUIREMENTS: 9 TO 28VDC • FLOW DIRECTION LEFT TO RIGHT | |
Meter Flow Rates Vs. Viscosity
Use the chart below to determine maximum meter flow rate relative to meter bearing material and product viscosity:
- Determine the percent of rated capacity at which the meter will be required to operate;
- Determine product viscosity at system operating temperature;
- Plot the point on the chart where the two lines intersect;
- Determine the meter bearing material from construction/application table above and locate the corresponding slope on the chart.
If the plotted point is above the bearing material slope, you are outside the allowable pressure loss for the specified meter and bearing. You should either chose a larger meter, reduce flow rate, or consider alternative bearing materials.
