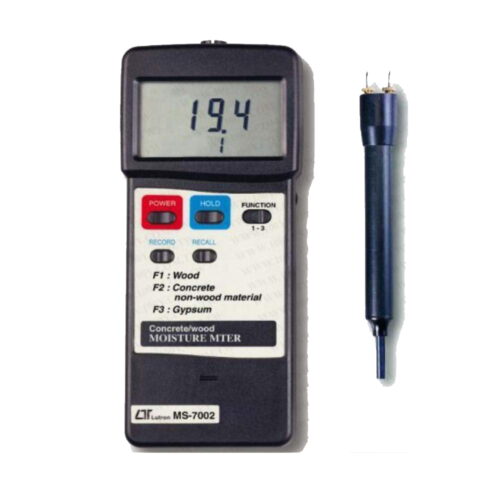

Lutron MS-7002 Moisture Meter
Lutron MS-7002 Moisture Meter Designed to check the moisture level of wood, concrete, gypsum, and other non-wood material. The Heavy-duty & compact housing case, designed for easy carry-out & operation.
Applications: wood, paper, concrete, soil, asphalt, grain, etc
Description
Reviews (0)
Discription
Lutron MS-7002 Moisture Meter is a state-of-the-art device designed to accurately measure the moisture content of various materials, including wood, paper, and fabrics. With its advanced technology and user-friendly interface, the MS-7002 is the perfect tool for professionals and DIY enthusiasts.
Features of Lutron MS-7002 Moisture Meter:
- 6 % to 40 % Moisture Range on Wood.
- 0 to 100% Relative Moisture Value for Concrete and Other Non-wood Material.; 0.2 % to 50 % Moisture Range on Gypsum.; Designed to Check the Moisture Level of Wood, Concrete, Gypsum and Other Non-wood Material.;
- Microprocessor Circuit Assures Maximum Possible Accuracy, Provides Special Functions and Features.; Digital Reading With Large Lcd Display.
- Separate Pin Type Moisture Probe, Easy Operation. & Remote Measurement.; Records Maximum & Minimum Reading With Recall.; Data Hold Function to Freeze the Desired Value on Display.; Auto Shut Off Saves Battery Life.; Rs 232 Pc Serial Interface.
- Heavy Duty & Compact Housing Case, Designed for Easy Carry Out & Operation.; Built-in Low Battery Indicator.
Specification
| Manufacturer | Lutron |
|---|---|
| Model | MS-7002 |
| Measuring Parameters | Moisture |
| Range | 6 % to 40 % |
| Resolution | 0.1 |
| Accuracy | ± ( 5 % + 5 d ) |
| Circuit | Custom one-chip of microprocessor LSI circuit. |
| Display | 13 mm ( 0.5″ ) large LCD display |
| Probe connection | Separate 2 pins moisture electrode |
| Data Hold | By push button |
| Memory | Records Maximum & Minimum reading value. |
| Power off | Auto shut off, saves battery life, or manual off by push button. |
| Sampling Time | Approx. 0.8 second |
| Data Output | RS 232 PC serial interface |
| Operating Temperature | 0 to 50 °C |
| Operating Humidity | Less than 80 % RH |
| Power Supply | Alkaline 006P, MN1604 ( PP3 ) DC 9V battery |
| Power Current | Approx. DC 6.5 mA |
| Supply Scope | Instruction manual, Included Moisture probe, Extra contact pins, Hard Carrying Case. |
| Optional Accessories | RS232 cable, UPCB-01. USB cable, USB-01. Data Acquisition software, SW-U801-WIN. |
| Dimensions | 180 X 72 X 32 mm |
| Weight | 330 Grams |
