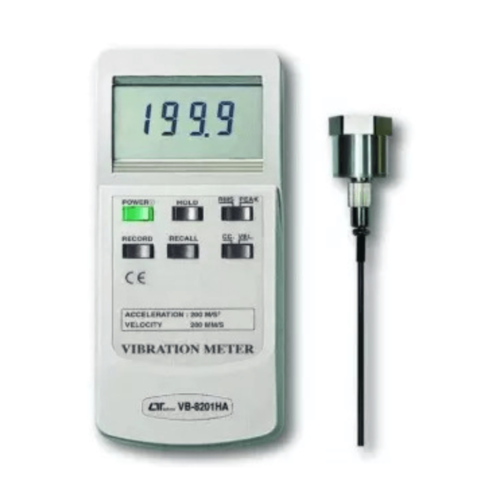

Lutron VB8201HA Vibration Meter
Lutron VB8201HA Vibration Meter is a device designed to measure frequency and acceleration. This device has a measuring Frequency range of up to 10 Hz – 1 kHz and an Acceleration measuring range of up to 200 m/s2. This Vibration Meter separately provides a vibration probe and also users can easily be operated it.
Applications: Coal Mining areas, Refineries, Petrochemicals, Machine buildings, Hydraulic and Pneumatic.
Description
Reviews (0)
Discription
Lutron VB8201HA Vibration Meter is a one-hand operating device and it is used to measure frequency and acceleration. This Vibration Meter comes with a complete set with a heavy-duty & compact housing case.
Features of Lutron Vibration Meter:
- This Lutron Vibration Meter measures Frequency range 10 Hz – 1 kHz and sensitivity relative meet ISO 2954.
- Super large LCD screen
- RMS & Peak measurement
- Microcomputer circuit, high performance.
- The Vibration Meter supplies with vibration sensor
- This Lutron Vibration Meter has auto shut-off mode and it saves battery life.
- It has a built-in low battery indicator.
- Velocity measuring range 200 mm/s.
- Heavy duty & compact housing case.
- Acceleration measuring range 200 m/s2.
- Complete set with the hard carrying case
- Data hold button to freeze the desired reading
Specification
| Manufacturer | Lutron |
|---|---|
| Model No | VB8201HA |
| Measuring Parameters | Acceleration, Frequency, Velocity |
| Operating Temperature | 0 to 50 °C |
| Temperature Accuracy | 23 ± 5 °C |
| Operating Humidity | < 80% RH. |
| Measurement frequency | 10 Hz to 1 KHz |
| Frequency Accuracy | 80 Hz, 160 Hz |
| Circuit | Exclusive microcomputer circuit |
| Display | Large LCD Display |
| Power Supply | DC 9V |
| Battery | Alkaline |
| Power Consumption | Approx. DC 6 mA |
| Memory | Maximum & Minimum value. |
| Dimensions | Main Instrument: 185 x 78 x 38 mm |
| Weight | 274 Grams |
