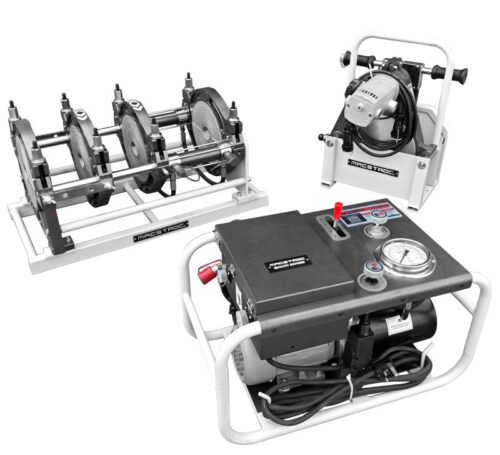

Macstroc Hydraulic ButtFusion Machine for HDPE Welding, MacFusion

HDPE Welding Buttfusion machine, Engineered for precision HDPE plastic pipe welding, the MacFusion Series handles PE, PP, and PVDF pipes with ease. With a robust frame, hydraulic unit, and a removable PTFE-coated heating plate for accurate temperature control, these machines guarantee consistent and high-quality welds. Designed for reliability, the low starting pressure makes them perfect for small pipe welding, while the adjustable welding position ensures easy handling of various fittings.  The MacFusion Series also includes a high-accuracy, shockproof pressure gauge and a dual-channel timer to record heating and cooling cycles, enhancing welding efficiency. Additionally, an optional data logger can be added to improve performance monitoring, making these machines a top choice for companies in Dubai, Riyadh, Doha, Muscat, and across the Middle East and Africa. we supply Macstroc MacFusion Series ButtFusion HDPE welding Machines in the UAE market, including Dubai, Abu Dhabi, and Sharjah, as well as the broader Middle East regions like Saudi Arabia, Qatar, Bahrain, Kuwait, and Oman. These machines are also ideal for the growing demand in the African market.

HDPE Welding Buttfusion machine, Engineered for precision HDPE plastic pipe welding, the MacFusion Series handles PE, PP, and PVDF pipes with ease. With a robust frame, hydraulic unit, and a removable PTFE-coated heating plate for accurate temperature control, these machines guarantee consistent and high-quality welds. Designed for reliability, the low starting pressure makes them perfect for small pipe welding, while the adjustable welding position ensures easy handling of various fittings.  The MacFusion Series also includes a high-accuracy, shockproof pressure gauge and a dual-channel timer to record heating and cooling cycles, enhancing welding efficiency. Additionally, an optional data logger can be added to improve performance monitoring, making these machines a top choice for companies in Dubai, Riyadh, Doha, Muscat, and across the Middle East and Africa. we supply Macstroc MacFusion Series ButtFusion HDPE welding Machines in the UAE market, including Dubai, Abu Dhabi, and Sharjah, as well as the broader Middle East regions like Saudi Arabia, Qatar, Bahrain, Kuwait, and Oman. These machines are also ideal for the growing demand in the African market.

Description
Reviews (0)
CODE [MODEL]MACFUSION160    MACFUSION250MACFUSION315MACFUSION355
PIPE SIZE (mm)40,63,75,90,110,125,140,16063,75,90,110,125,140,160,180,200,225,25090,110,125,140,160,180,200,225,250,280,31590,110,125,140,160,180,200,225,250,280,315,355
HEATING PLATE MAX. TEMP270°C270°C270°C270°C
TEMP. DEV. IN SURFACE±5°C±5°C±5°C±5°C
PRESSURE ADJUST RANGES0-7Mpa0-7Mpa0-7Mpa0-7Mpa
WORKING VOLTAGE220-230V  50/60Hz220-230V  50/60Hz220-230V  50/60Hz220-230V  50/60Hz
HEATING PLATE POWER1KW2KW3KW4KW
PLANING TOOL POWER0.7KW1.1KW1.1KW1.1KW
HYDRAULIC UNIT POWER0.75KW0.75KW0.75KW0.75KW
TOTAL POWER2.45KW3.8KW4.85KW5.85KW
WEIGHT  [KG]125140200250
CODE [MODEL]MACFUSION450    MACFUSION500MACFUSION630
PIPE SIZE (mm)200,225,250,280,315,355,400,450200,225,250,280,315,355,400, 450,500315,355,400,450,500,560,630
HEATING PLATE MAX. TEMP270°C270°C270°C
TEMP. DEV. IN SURFACE±7°C±7°C±7°C
PRESSURE ADJUST RANGES0-8Mpa0-8Mpa0-8Mpa
WORKING VOLTAGE380V [3PH] 50/60Hz380V [3PH] 50/60Hz380V [3PH] 50/60Hz
HEATING PLATE POWER5.38KW6.5KW9.35KW
PLANING TOOL POWER1.5KW1.5KW2.2KW
HYDRAULIC UNIT POWER1.5KW1.5KW1.5KW
CRANE POWER [OPTION]0.25T/1.1KW0.25T/1.1KW0.25T/1.1KW
TOTAL POWER8.38KW9.5KW13.05KW
WEIGHT [ KG]560700780
CODE [MODEL]MACFUSION800    MACFUSION1000MACFUSION1200
PIPE SIZE (mm)450,500,560,630,710,800630,710,800,900,1000630,710,800,1000,1200
HEATING PLATE MAX. TEMP270°C270°C270°C
TEMP. DEV. IN SURFACE±7°C±7°C±7°C
PRESSURE ADJUST RANGES0-16Mpa0-16Mpa0-16Mpa
WORKING VOLTAGE380V [3PH] 50/60Hz380V [3PH] 50/60Hz380V [3PH] 50/60Hz
HEATING PLATE POWER12.5KW17.5KW21.5KW
PLANING TOOL POWER2.2KW3KW4KW
HYDRAULIC UNIT POWER3KW3KW3KW
CRANE POWER [OPTION]0.5T/1.1KW0.5T/1.1KW0.5T/1.1KW
TOTAL POWER17.7KW23.5KW28.5KW
WEIGHT [ KG]176524513685
