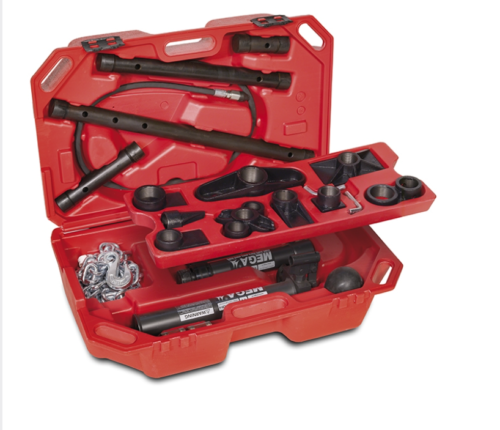

MEGA GC-10 BODY REPAIR KIT
CHARACTERISTICS
The most complete body repair kit due to the number of accessories and safest and sturdiest thanks to the threaded connections which allow pulling operations, compared with other more extensive but less reliable connection systems which only allow pushing operations.
Indispensable for jobs such as body repairs, rescues and roadside service or any other pushing, pulling, spreading or lifting applications that require hydraulic force.
IMPORTANT: As the cylinders hace a grater capacity than the components, namely chains, cylinder toes, tube extension, etc., they should never exceed half their rated capacity.
The maximum capacity of the SH-1 spreading cylinder is 1t.
Maximun working load of the chain: 1t.
Description
Reviews (0)
TECHNICAL SHEET
| Capacity (t) | 10 | Capacity (t) | 10 | |
|---|---|---|---|---|
| 1 | BM-04 | 14 | A-5050 | |
| 2 | CC-10-B | 15 | A-5039 | |
| 3 | GC-10/2272 | 16 | ||
| 4 | A-5541 | 17 | A-5049 | |
| 5 | 18 | SH-1 | ||
| 6 | 19 | A-5043 | ||
| 7 | 20 | A-5086 | ||
| 8 | A-5048 | 21 | A-5057 | |
| 9 | A-5042 | 22 | A-5058 | |
| 10 | A-5038 | 23 | A-5056 | |
| 11 | A-5053 | 24 | A-5051 | |
| 12 | A-5054 | 25 | A-5052 | |
| 13 | A-5055 | |||
| Weight (kg) | 41.5 | Weight (kg) | 41.5 | |
| Reference | GC-10 | Reference | GC-10 |
