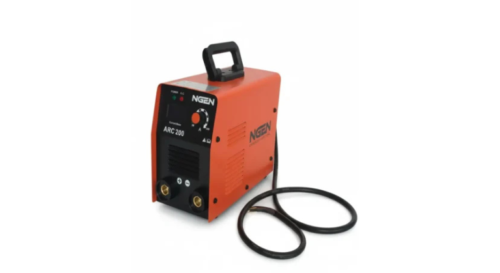

NGEN-ARC200
- Advanced (IGBT) Inverter and single PCB technology;
- Â Stable performance with strong compensation capability;
- Easy for arc starting, less splash, thermostatic control, automatic over-voltage and over-current protection, fan cooled;
- Supplied complete with electrode holder, earth cable, hand held shield and welding brush;
Description
Specifications
Reviews (0)
PRODUCT FUNCTIONS
- +30m WeIding CabIe 1.6-4.0mm Rod
- Generator FriendIy CompatibIe
- Wide VoItage AC 176V-280V
PRODUCT ACCESSORIES
- Earthing Clamp 2mtr & Earthing Holder 3mtr
PRODUCT DISCRIPTION
Innovation ARC welding machine with Bluetooth speaker, attractive design, portable and convenient for user, applicable for welding all kinds of low carbon steel, medium carbon steel and alloy steel etc.
Specifications
| Model | ARC200 |
| Voltage (V): | 220V ±15% |
| Frequency (Hz): | 50–60 |
| No-Load Voltage (V): | 60 |
| Current Range (A): | 20–180 |
| Input Power (KVA): | 8.4 |
| Duty Cycle: | 35% |
| Welding Rod (mm): | 1.6–4.0 |
| Power Factor: | 0.73 |
| Insulation Grade: | F |
| Protection Grade: | IP21S |
| Weight (kg): | 5.5 |
| Dimensions (L×W×H mm): | 345 × 155 × 270 |
| Carton CBM (m³): | 0.0367 |
| Hot Start: | ✔ |
| VRD: | ✔ |
| Automatic Voltage Compensation: | ✔ |
| Over Heat Protection: | ✔ |
| Under Voltage Protection: | ✔ |
| Over Current Protection: | ✔ |
