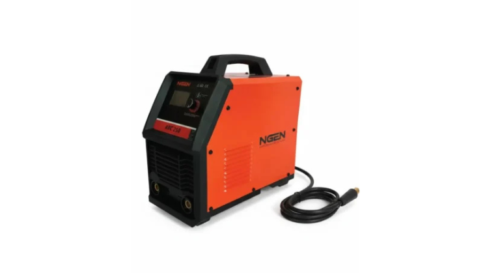

NGEN-ARC250
- Pure digital 32-bit MCU control, fast response speed
- High speed DC fan with low temperature rise of power components
- LED screen display, multiple adjustable parameters
- Dual voltage series voltage automatic recognition, safe and reliable
- Strong resistance to power grid fluctuations, stable welding even when the power grid is unstable
Description
Specifications
Reviews (0)
PRODUCT FUNCTIONS
- 30m WeIding CabIe 1.6-4.0mm Rod
- Generator FriendIy CompatibIe
- Wide VoItage AC 176V-280V
PRODUCT ACCESSORIES
- Earthing Clamp 2mtr & Earthing Holder 3mtr
PRODUCT DISCRIPTION
Innovation ARC welding machine with Bluetooth speaker, attractive design, portable and convenient for user, applicable for welding all kinds of low carbon steel, medium carbon steel and alloy steel etc.
Specifications
| Model | ARC250 |
| Voltage (V): | 220V ±15% |
| Frequency (Hz): | 50–60 |
| No-Load Voltage (V): | 65 |
| Current Range (A): | 20–240 |
| Duty Cycle: | 40% |
| Welding Rod (mm): | 1.6–5.0 |
| Power Factor: | 0.73 |
| Insulation Grade: | F |
| Protection Grade: | IP21S |
| Weight (kg): | 8 |
| Dimensions (L×W×H mm): | 380 × 210 × 340 |
| Carton CBM (m³): | 0.06 |
| Arc Force: | ✔ |
| Hot Start: | ✔ |
| VRD: | ✔ |
| Automatic Voltage Compensation: | ✔ |
| Over Heat Protection: | ✔ |
| Under Voltage Protection: | ✔ |
| Over Current Protection: | ✔ |
