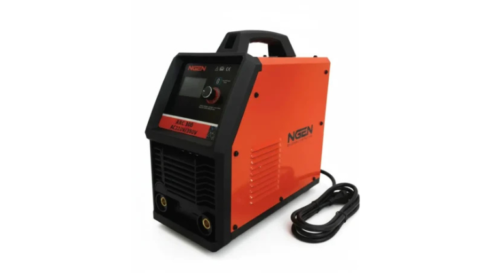

NGEN-ARC300
- Pure digital 32-bit MCU control, fast response speed
- High speed DC fan with low temperature rise of power components
- LED screen display, multiple adjustable parameters
- Dual voltage series voltage automatic recognition, safe and reliable
- Strong resistance to power grid fluctuations, stable welding even when the power grid is unstable
Description
Specifications
Reviews (0)
PRODUCT FUNCTIONS
- Independent adjustment of welding current, arc initiation current, and thrust current
- Low voltage anti electric shock VRD function
- Built in anti sticking function
- Weldable carbon steel, ordinary low-alloy steel, stainless steel
- Comprehensive protection against overcurrent and overheating
PRODUCT ACCESSORIES
- Earthing Clamp 2mtr & Earthing Holder 3mtr
Specifications
| Model | NGEN-ARC300 |
| Voltage (V): | 220 / 380V |
| Frequency (Hz): | 50–60 |
| No-Load Voltage (V): | 67 |
| Current Range (A): | 20–240 |
| Duty Cycle: | 35% |
| Welding Rod (mm): | 1.6–5.0 |
| Power Factor: | 0.73 |
| Insulation Grade: | F |
| Protection Grade: | IP21S |
| Weight (kg): | 13 |
| Dimensions (L×W×H mm): | 380 × 210 × 340 |
| Carton CBM (m³): | 0.06 |
| Anti-Stick Function: | ✔ |
| Arc Force: | ✔ |
| Hot Start: | ✔ |
| VRD: | ✔ |
| Automatic Voltage Compensation: | ✔ |
| Over Heat Protection: | ✔ |
| Under Voltage Protection: | ✔ |
| Over Current Protection: | ✔ |
