PRODUCT FUNCTIONS
- Excellent arcing and stable arc
- Stably start arcing at low current 10A
- No Arc Blow
PRODUCT ACCESSORIES
- TIG Torch 4mtr length
- Cable Clamp 3mtr length
PRODUCT DISCRIPTION
- Manual welding status: welding current and arc current are independently adjustable, with low-voltage anti electric shock VRD function
- Argon arc welding status: welding current, arc starting current, and arc ending current are independently adjustable, and the pre gas time, slow rise time, slow fall time, and post gas time are independently adjustable
- Argon arc welding has a fast starting speed and good welding effect
- Argon arc welding has 2T/4T function, convenient to use
- Weldable carbon steel, ordinary low-alloy steel, stainless steel
- Comprehensive protection against overcurrent and overheating
Specifications

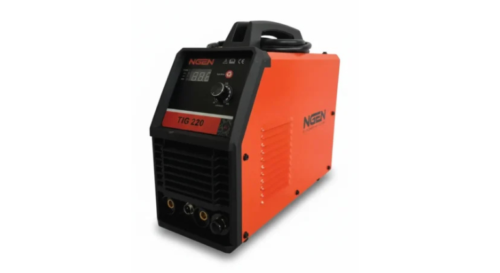

| Model | TIG220 |
| Voltage (V): | 220V |
| Frequency (Hz): | 50-60 |
| Input Power (KVA): | 9.6 |
| No-load Volt (V): | 56 |
| TIG Current Range (A): | 10-205 |
| MMA Current Range (A): | 20-200 |
| Duty Cycle: | 40% |
| MMA Welding Rod (mm): | Ø 1.6–4.0 |
| Power Factor: | 0.73 |
| Efficiency (%): | 85 |
| Insulation Grade: | F |
| Protection Grade: | IP21S |
| Weight (Kg): | 8 |
| Dimensions (L×W×H mm): | 380 × 155 × 270 |
| Carton CBM (m³): | 0.04 |
| TIG Post Gas Time Adjustable: | ✔ |
| TIG Current Down Slope Time: | Optional |
| 2T/4T: | ✔ |
| MMA Function: | ✔ |
| MMA VRD: | Optional |
| Automatic Voltage Compensation: | ✔ |
| Overheat Protection: | ✔ |
| Under Voltage Protection: | ✔ |
| Over Current Protection: | ✔ |
| TIG Torch: | WP–26B/4M |
