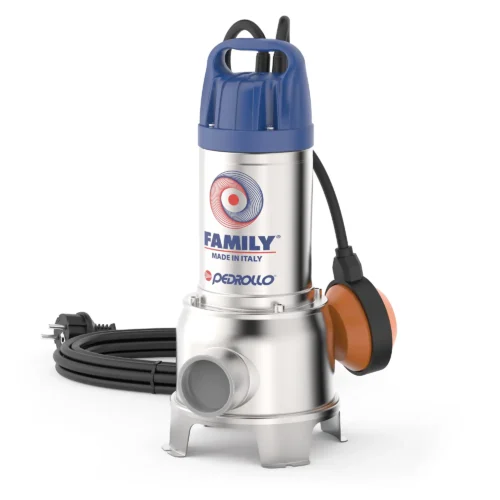

Pedrollo FAMILY® Submersible pumps for slightly sewage
The FAMILY pump is designed for dirty water and sewage drainage in domestic settings, capable of handling suspended solids up to 30 mm in diameter. It’s easy to operate and reliable in automated fixed installations.
Description
Reviews (0)
Technical Features
| Flow rate | up to 250 l/min (15 m³/h) |
| Head up | up to 10 m |
| Liquid temperature | up to +40° C |
| Capable of processing suspended solids | up to Ø 30 mm |
| Maximum operating depth below water level | up to 5m (with an appropriately sized power cable) |
| Minimum immersion for continuous service | 160 mm |
| Motor | 2 poles |
| Ingress protection rating | IP 68 |
Construction Materials
| Pump housing | Stainless steel AISI 304 |
| Impeller | Stainless steel AISI 304 |
| Motor sleeve | Stainless steel AISI 304 |
| Shaft | Stainless steel AISI 431 |
