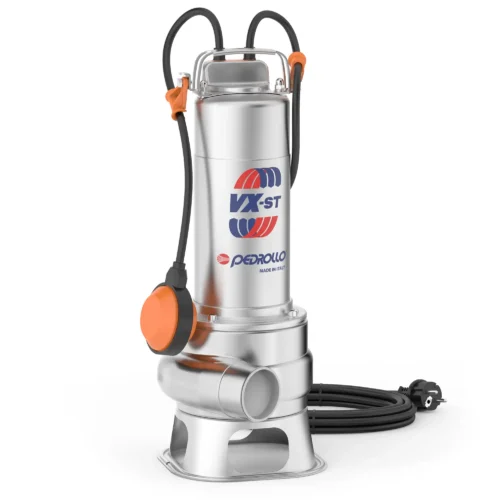

Pedrollo VX-ST Stainless-steel submersible sewage pumps
VX-ST stainless steel submersible pumps are designed for sewage drainage in domestic, civil, and industrial settings where suspended solids are present in the water, such as sludge-mixed water, groundwater, or surface water. They are also perfect for pumping out flooded areas like basements, underground parking garages, car wash stations, and emptying septic tanks and sewage systems.
Description
Reviews (0)
Technical Features
| Flow rate | up to 700 l/min (42 m3/h) |
| Head up | up to 17 m |
| Liquid temperature | up to +40° C |
| Capable of processing suspended solids | – up to Ø 40 mm for VX /35-ST – up to Ø 50 mm for VX /50-ST |
| Maximum operating depth below water level | up to 5m (with an appropriately sized power cable) |
| Minimum immersion for continuous service | – 290 mm for VX 8-ST e VX 10-ST – 330 mm for VX 15-ST – 360 mm for VX 20-ST |
| Motor | 2 poles |
| Ingress protection rating | IP 68 |
Construction Materials
| Pump housing | Stainless steel AISI 304 |
| Impeller | Stainless steel AISI 304 |
| Motor sleeve | Stainless steel AISI 304 |
| Shaft | Stainless steel AISI 431 |
