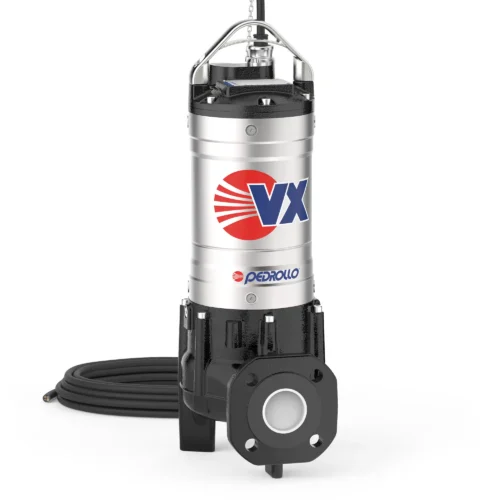

Pedrollo VX4 Submersible sewage pumps
The VX4 series is constructed from thick cast iron, offering exceptional robustness, abrasion resistance, and longevity. Equipped with VORTEX-type impellers, known for their reliability and minimal clogging risk, these pumps are versatile for handling sewage with suspended solids up to 80 mm in diameter, as well as wastewater, rainwater, city sewage, and industrial wastewater. They are suitable for a wide range of applications, including sewers, tunnels, excavations, canals, and underground parking facilities.
Description
Reviews (0)
Technical Features
| Flow rate | up to 900 l/min (54 m3/h) |
| Head up | up to 7 m |
| Liquid temperature | up to +40° C |
| Capable of processing suspended solids | – up to Ø 50 mm for VX4-10/50 – up to Ø 65 mm for VX4-10/65 – up to Ø 80 mm for VX4-10/80 |
| Maximum operating depth below water level | up to 10 m (with an appropriately sized power cable) |
| Minimum immersion for continuous service | 500 mm |
| Motor | 4 poles |
| Ingress protection rating | IP 68 |
Construction Materials
| Pump housing | Cast iron |
| Impeller | Cast iron |
| Motor sleeve | Stainless steel AISI 304 |
| Shaft | Stainless steel AISI 431 |
