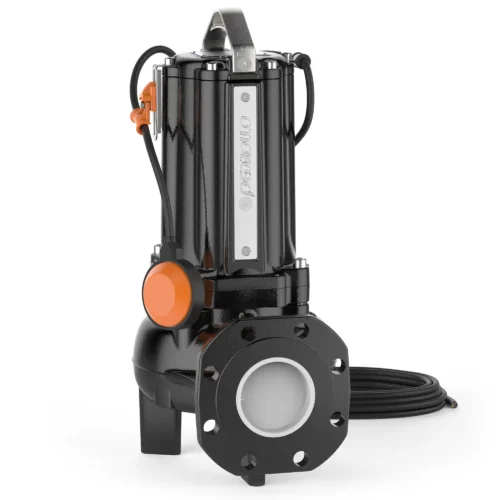

Pedrollo VXC-F Submersible sewage pumps
The VXC-F series is constructed from thick cast iron, offering exceptional robustness, abrasion resistance, and longevity. Featuring VORTEX-type impellers, these pumps are designed to drain wastewater, sludge-mixed water, liquids with air or gas, as well as activated and putrid sludge. Recommended for stationary installation in sewers, tunnels, shafts, underground parking facilities, and specialized manholes.
Description
Reviews (0)
Technical Features
| Flow rate | up to 1250 l/min (75 m3/h) |
| Head up | up to 20 m |
| Liquid temperature | up to +40° C |
| Capable of processing suspended solids | – up to Ø 50 mm for VXC /50-F – up to Ø 65 mm for VXC /65-F |
| Maximum operating depth below water level | up to 10 m (with an appropriately sized power cable) |
| Minimum immersion for continuous service | completely uncovered |
| Motor | 2 poles |
| Ingress protection rating | IP 68 |
Construction Materials
| Pump housing | Cast iron |
| Impeller | Cast iron |
| Motor case | Cast iron |
| Shaft | Stainless steel AISI 431 |
