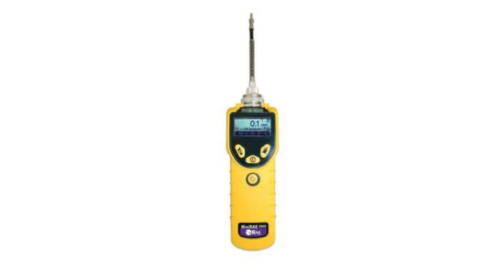

RAE Systems MiniRAE 3000+ Portable Handheld VOC Monitor – 10.6 eV Lamp, Li-Ion / Universal Charger – 059-B110-000
059-B110-000 MiniRAE 3000+ Portable Handheld VOC Monitor – 10.6 eV Lamp, Li-Ion / Universal Charger by RAE Systems
The MiniRAE 3000 is a comprehensive handheld VOC (Volatile Organic Compound) monitor that uses a third-generation patented PID technology to accurately measure more ionizable chemicals than any other device on the market. It provides full-range measurement from 0 to 15,000 ppm of VOCs.
The MiniRAE 3000 has a built-in wireless modem that allows real-time data connectivity with the ProRAE Guardian command center located up to 2 miles (3 km) away through a Bluetooth connection to a RAELink 3* portable modem or optionally via Mesh Network.
Monitor only includes
- MiniRAE 3000 Monitor, Model PGM-7320
- Wireless communication module built in, as specified
- Datalogging with ProRAE Studio II Package
- Charging/download adapter
- RAE UV lamp, as specified
- Flex-I-Probe™
- External filter
- Rubber boot
- Alkaline battery adapter
- Lamp-cleaning kit
- Tool kit
- Operation CD-ROM
- Operation and Maintenance manual
- Soft leather case
Optional calibration kit adds
- 100 ppm isobutylene calibration gas, 34L
- Calibration regulator and flow controller
Optional guaranteed cost-of-ownership program
- 4-year repair and replacement guarantee
- Annual maintenance service
Key Features
- Third-generation patented PID technology
- VOC detection range from 0 to 15,000 ppm
- 3-second response time
- Humidity compensation with built-in humidity and temperature sensors
- Six-month datalogging
- Real-time wireless built-in – Bluetooth (and optional RAELink3 portable modem) or Mesh Network support
- Large graphic display with integrated flashlight
- Multi-language support with 10 languages encoded
- IP-67 waterproof design
Application
- Oil and Gas
- HazMat
- Industrial Safety
- Civil Defense
- Environmental and Indoor Air Quality
Specifications
Reviews (0)
Specifications
Instrument Specifications
| Size: | 10″ L x 3.0″ W x 2.5″ H (25.5 x 7.6 x 6.4 cm) |
| Weight: | 26 oz (738 g) |
| Sensors: | Photoionization sensor with standard 10.6 eV lamp or optional 9.8 eV or 11.7 eV lamp |
| Battery: | – Rechargeable Lithium-Ion battery pack – Alkaline battery adapter |
| Operating Hours: | 16 hours (12 hours with alkaline adapter) |
| Display: | 4 lines, 28 x 43 mm, LED backlight |
| Keypad: | 1 operation key, 2 programming keys, flashlight control |
| Direct Readout: | – VOCs (ppm / mg/m³) – High values – STEL & TWA – Battery & shutdown voltage – Date, time, temperature |
| Alarms: | 95 dB buzzer + flashing LED – High: 3 beeps/sec – Low: 2 beeps/sec – STEL/TWA: 1 beep/sec – Latching or auto reset – Low battery & pump stall alerts |
| EMC/RFI: | Complies with EMC directive (2004/108/EC) |
| IP Rating: | – IP67 (unit off) – IP65 (operating) |
| Datalogging: | Up to 6 months (1-minute intervals) |
| Calibration: | Two or three-point calibration Stores gas types, limits & dates |
| Sampling Pump: | Internal pump (500 cc/min) Up to 100 ft sampling |
| Low Flow Alarm: | Auto pump shut-off |
| Communication: | PC download via cradle or Bluetooth Wireless RF modem supported |
| Wireless Network: | Mesh RAE Systems network |
| Wireless Range: | Up to 660 ft (200 m) LOS Mesh: up to 330 ft (100 m) |
| Certifications: | CSA, ATEX (Intrinsically Safe) |
| Temperature: | -20°C to 50°C |
| Humidity: | 0% to 95% RH (non-condensing) |
| Attachments: | Yellow rubber protective boot |
| Warranty: | 3 years (lamp), 1 year (others) |
| Wireless Frequency: | IEEE 802.15.4 Sub 1GHz |
| Wireless Approvals: | FCC Part 15, CE R&TTE |
| Radio Module: | Bluetooth or RM900 |
Sensor Specifications
| Gas Monitor: | VOCs |
| Range: | 0 to 999.9 ppm 1,000 to 15,000 ppm |
| Resolution: | 0.1 ppm 1 ppm |
| Response Time (T90): | < 3 s < 3 s |
